A20VII

Cincom A20VII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector (Electronic type)
  • Part-off Tool Breakage Detector (Probe type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adaptor
  • Chip Conveyor

Specifications

Number of axis - 7

Main spindle

  • Max. turning diameter - 20mm
  • Max. turning length (in one chucking) - 165mm
  • Spindle speed - 8,000RPM
  • Drive Rating - 3.7kW
  • No. of turning tools - 5
  • Number of tools for front-end machining - 4
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 20mm
  • Max. workpiece length - 80mm
  • Drive tating - 1.5kW
  • Spindle speed - 8,000RPM
  • Number of tools for back-end machining - 8
  • C-Axis - 0.001°

Driven Tools

  • No. of Driven Tools (transverse) - 4
  • Driven Tool Motor Power - 0.75kW
  • Driven Tool Max. Speed - 8,000RPM

Other Information

  • Axis rapid Traverse - 32m/min
  • Space Requirement - 2100x1185mm
  • Weight - 2400kg

Machine Overview

The A20 has been acclaimed by customers as a highly rigid, low-cost machine. The A20 Type VII provides an X2 axis on the back spindle making front/back simultaneous machining possible. This, in combination with the fast 32m/min rapid feed rate, has substantially cut cycle times.

With its Fanuc Series 32i-Model A System Control and five cutting axes (X, X2, Y, Z, Z2) the A20VII offers quick set-ups, high speed and low running costs. In addition, Cincom’s unique Streamline Control assures fast and smooth movements.

The standard tool layout includes 5 turning tools, 4 rotary tools, 4 tools for front drilling and 8 tools for back drilling.

Cincom A20VII Work Area

Work Area

Vertical Tool Holder

  • 4 rotary cross-drilling / milling spindles and 5 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.
  • One cross tool can be replaced with one of:
    • BSE407: 3 front live end face
      • Front: F7 - M5 (ER11).
    • BSE507: 3 front / 3 back live end face
      • Front: F7 - M5 (ER11)
      • Back: F5 - M4 (ER11)

End Working Holder 1

  • 4 stations for front machining
  • 4 stations for back machining

End Working Holder 2

  • 4 fixed stations for back machining. With A220-U151B option, all 4 can be utilized for either live or fixed end working (4,500RPM / 0.75kW).
  • Optional GSS1330 Back Slitting and Cross-Drilling Spindle:
    • ER11, 3600RPM, 3/5 Gear Ratio
    • Adjustable 90° for cross-drilling
close button

L20X

Cincom L20X

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector (Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adaptor
  • Chip Conveyor
  • Part-off Tool Breakage Detector (Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 20mm
  • Max. Turning Len. (no rechucking) - 200mm
  • Motor Rating - 2.2/3.7kW
  • Spindle speed range - 200-10,000RPM
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 20mm
  • Motor Rating - 0.75 / 1.5kW
  • Spindle speed range - 200-8,000RPM
  • Spindle Indexing - 1°
  • C-axis - 0.001°

Tools

  • Number of turning tools - 5
  • Number of drilling/boring tools-front - 6(14)
  • Number of back operation tools - 8(16)
  • Number of rotary tools-cross - 5(14)
  • Number of rotary tool positions face - 5(21)
  • Rotary tool power - 1kW
  • Rotary tool speed range - 200-5,000RPM

Machine Overview

The CINCOM L20X further develops on the best-selling L20E-IX with additional tooling capacity and a Y axis on the front-machining toolpost.

The L20X has been specially developed for high-precision manufacture of simple and complex parts in medium to large batch sizes. It offers all-round versatility and flexibility with its many options and extremely short setup times.

Cincom L20X Work Area

Work Area

Vertical Holder

  • 5 Turning and 7 rotary drive positions (3 of which can be swiveled 90) fitted as standard
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools rated at 1kW / 5,000RPM.
  • Tooling arrangements allow extra cross rotary tools, extra turning tools or extra end-working rotary tools depending on your priorities.

Front Machining Post

  • 6 front-working positions as standard (up to 3 rotary tools, 0.75kW, 5,000RPM).
  • Y-Axis as standard to enable simultaneous control of gang and front machining post.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.

Back Machining Post

  • 4 fixed back-working positions and 2 rotary GSE3507 as standard.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
close button

M432VIII

Cincom M432VIII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector (Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adaptor
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 32mm
  • Max. turning length - 325mm
  • Spindle through-hole diameter - 36mm
  • Main spindle speed - 200-8,000RPM
  • Main spindle drive power - 3.7 / 7.5kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm
  • Motor rating - 2.2 / 3.7kW
  • Sub-spindle speed - 200-8,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 7
  • Driven Tool Power - 1kW
  • Speed of tools - 200-6,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 3
  • Driven tools for back machining - up to 6
  • Y Axis - Yes

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 1.5 / 2.2kW
  • Speed of driven tools - 200-6,000RPM

Other Information

  • Space requirement (without bar feeder) - 3,400 x 1,410 x 1,900mm
  • Weight - 3,300kg

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space!

Even greater value!

The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. The next generation M32 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven). New advanced functions include a B axis on the gang tool post with 4 axis simultaneous containing control. In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Work Area

Vertical Holder

  • 4 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • The B Axis is the slant axis in reference to the Y axis direction.
  • Rotary tools incorporating a B axis can continuously change the angle (-10° to +105°) for angled holes.
  • Contouring with simultaneous 4-axis control is also possible.

Robotic Turret

  • Allows Front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (6,000RPM and 1.5 / 2.2kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • Can accommodate holders at 3 positions (2 for rotary tool specifications – 1kW / 6000rpm and 1 for fixed tool specifications)
  • Up to 9 tools can be fitted.
  • Back tool post using Y3 axis in combination with the sub spindle X3 and Z3 axes allows the following operations to be carried out simultaneously with other operations.
  • Allows operations such as drilling (face / cross), tapping (face / cross), screw-cutting, boring, interpolation, PCD and turning to be carried out simultaneously with other operations.
close button

BNA-42GTY

Miyano BNA-42GTY

Machine Options

Standard

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Chip conveyor
  • Parts Conveyor
  • Medium Pressure Coolant system

Optional

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • 1,000 PSI High Pressure Coolant

Specifications

Main Spindle

  • Bar Capacity - 42mm
  • Standard Machining length - 110mm
  • Motor - 11 / 7.5kW
  • Spindle speed range - 50~6,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - f34mm
  • Motor - 5.5/3.7kW
  • Spindle speed range - 50~5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 1
  • Number of Stations - 8 (16)
  • Number of Driven tools - 8
  • Drive motor of Driven tool. - 8 ( 2.8/1.0kW )Nm
  • Driven tool speed range - Max. 6,000RPM

Gang Tool Slide

  • Turning Tools - 3
  • Number of Cross Rotary Tools - 3
  • Fixed rear facing tools - 7
  • Drive motor of Driven tool. - 1.5kW
  • Driven tool speed range - Max. 6,000RPM

Dimensions

  • Foot print (length width) - 2,350x1,475mm

Machine Overview

Featuring 2 spindles, Y-axis equipped turret and flexible gang toolslide, the BNA-42GTY offers excellent value with independent machining on the front and back of the workpiece simultaneously.

Miyano BNA-42GTY Work Area

Work Area

Main Spindle

  • 42mm Dia.
  • 7.5 / 11kW
  • 6,000 RPM
  • C-Axis

Sub Spindle

  • 34mm Dia.
  • 3.7 / 5.5kW
  • 5,000 RPM
  • C-Axis

Turret

  • 8 station turret with the half-position indexing mechanism utilizes all 16 turret stations with no turret tool holder interference.
  • The 8 driven tool positions are individually powered (2.8 / 1.0kW, 6000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • Featuring Y axis to enable maximum machining flexibility.
  • A flexible package of fixed and driven tooling is available.
close button

BNJ-51SY5

Miyano BNJ-51SY5

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Electronic Handwheel Handle retrace
  • Thermo Revision (Stealth System)
  • Tool Monitoring System
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional

  • Automatic bar feeder
  • Coolant mist extraction system
  • In cycle probing
  • Work handling automation
  • Long shaft working system

Specifications

Main Spindle

  • Bar Capacity - 51mm
  • Standard Machining length - 100mm
  • Spindle Nose - A2-6
  • Motor - 11 /7.5 kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - 42mm
  • Spindle Nose - Flat
  • Motor - 5.5 /3.7 kW
  • Spindle speed range - 67 - 5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 2
  • Number of Stations - 12 + 6
  • Number of Driven tools - 12
  • Drive motor of Driven tool. - 20 Nm [ 2.5 kW ]
  • Driven tool speed range - 6,000RPM

Machine Overview

Miyano BNJ-51SY5 Work Area

Work Area

Main Spindle

  • 51mm Dia.
  • 11 / 7.5kW
  • 5,000 RPM
  • A2-6
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 5.5 / 3.7kW
  • 5,000 RPM
  • C-Axis

Main Turret

  • 12 station turret.
  • The 12 driven tool positions are individually powered (2.5kW, 6000rpm) to minimize torque loss.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard allows more complex parts with driven tools.

Sub Turret

  • 6 station turret for back working.
  • Allows work to be carried out simultaneously on sub spindle whilst main turret works in main spindle.
  • Solid construction with no axis movement.
close button

BNE-51MSY

Miyano BNE-51MSY

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Electronic Handwheel Handle retrace
  • Tool Monitoring System
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional Accessories

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • Hainbuch workholding options
  • Long shaft working system

Specifications

Main Spindle ( AC motor )

  • Bar Capacity - 51mm
  • Standard Machining length - 90mm
  • Spindle Nose - Flat
  • Motor - 15 / 11kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Sub Spindle ( AC motor )

  • Maximum workpiece diameter - 51mm
  • Spindle Nose - Flat
  • Motor - 7.5 / 5.5kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 2
  • Number of Stations - 24 ( 12 x 2 HEAD )
  • Number of Driven tools - 24
  • Drive motor of Driven tool - 25 Nm [ 2.2kW ]
  • Driven tool speed range - 6,000RPM
  • Shank height of Square turning tool - 20mm X 20mm
Miyano BNE-51MSY Work Area

Work Area

Main Spindle

  • 51mm Dia.
  • 15 / 11kW
  • 5,000 RPM
  • Flat
  • C-Axis

Sub Spindle

  • 51mm Dia.
  • 7.5 / 5.5kW
  • 5,000 RPM
  • Flat
  • C-Axis

Twin Turrets

  • 2 x 12 station turrets.
  • The 12 driven tool positions are individually powered (2.2kW, 6000rpm) to minimize torque loss.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard on upper turret allows more complex parts with driven tools.
  • X2 axis on SP2
close button

08 Series

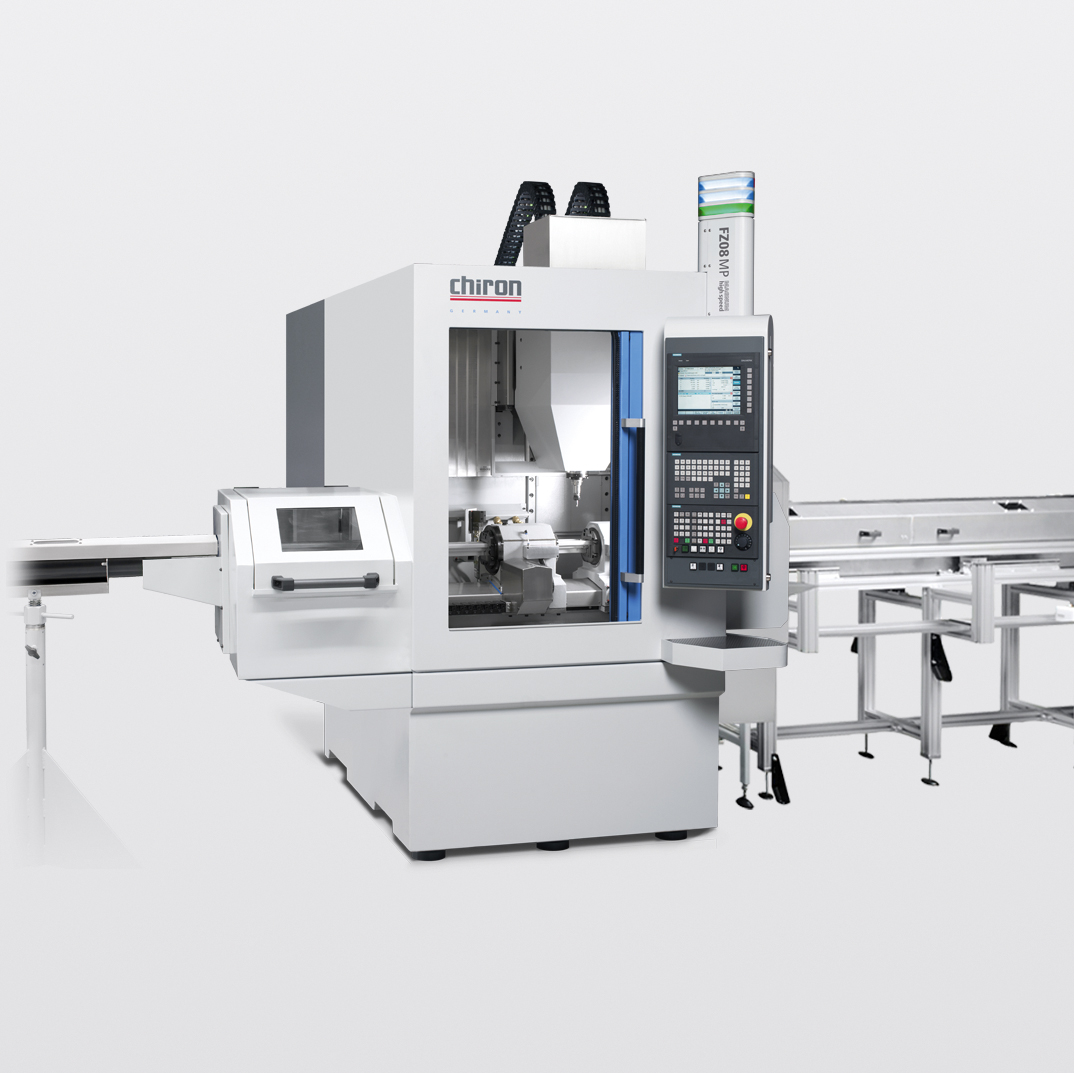

Chiron FZ08 MP

Fast, compact milling centers for high precision and diverse applications.

Technology

  • Travel X-Y-Z - up to 450-270-310mm
  • Spindle Power - up to 14kW
  • Spindle Speed - up to 40,000rmp
  • Axis acceleration - up to 2g
  • Chip-to-chip time - approx. 1.3s
  • Number of tools - max. 225
  • Tool taper - HSK 32/HSK 40
close button

12 Series

Chiron FZ12 MT

Fast, compact single and multi-spindle precision machining centers.

Technology

  • Travel X-Y-Z - up to 550-400-425mm
  • Spindle Power - up to 40kW
  • Spindle Speed - up to 40,000rmp
  • Axis acceleration - up to 2g
  • Rapid Feed Speeds - up to 75 m/min
  • Chip-to-chip time - approx. 1.9s
  • Number of tools - max. 177
  • Tool taper - ISO/CAT 30/ISO/CAT 40/HSK 40/HSK 50/HSK 63
close button

L12VII

Cincom L12VII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Medium Pressure Coolant Supply Unit
  • Part-off Tool Breakage Detector (Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adaptor
  • Chip Conveyor
  • Part-off Tool Breakage Detector (Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 12mm
  • Motor Rating - 2.2 / 3.7kW
  • Spindle speed - 15,000
  • No. of fixed tools for front-end machining - 4
  • No. of cross rotary tools - 4
  • Rotary tool power - 0.75kW
  • Rotary tool speed - 10,000RPM
  • No. of turning tools - 6
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 12mm
  • Motor Rating - 0.4 / 0.75kW
  • Spindle speed - 10,000RPM
  • No. of tools for back-end machining - 4 (8)
  • No. of driven tools for back-end machining - 4
  • Rotary tool power - 0.75kW
  • Rotary tool speed - 9,000RPM
  • C-axis - 0.001°

Machine Overview

The new L12-VII, including Switchable Guide Bush System allows the ‘best of both worlds’ for efficient machining of both long and short workpieces

Flexible tooling options available including fixed and rotary tools for front \ back-machining as well as 0-30° adjustable angle rotary tool post.

High speed 15,000RPM main spindle with 3.7kW motor - sub spindle 10,000RPM \ 0.75kW.

Cincom L12VII Work Area

Work Area

Vertical Holder

  • Vertical holder with 6 turning tools
  • Gang rotary tools:
    • ER11 10mm offset 2 stations
    • ER8 5mm offset 1 station
    • 10,000RPM 0.75kW

Front / back machining holder

  • Fixed 8 position (4 front / 4 back drilling holder)
  • 0-30° adjustable angle 6 position (3 front / 3 back) rotary tool post.
  • 10000RPM 0.75kW drive

Back Working Holder

  • 4 fixed / rotary spindles for back machining
  • Rotary tools drive 9,000RPM / 0.5kW
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
  • ER11 19.05mm
