B12VI

Cincom B12VI

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • High Pressure Coolant
  • Choice of Barfeeder
  • Mist Control Unit
  • Long Parts Adapter
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 12mm
  • Motor Rating - 2.2 / 3.7 kW
  • Spindle speed - 12,000 RPM
  • No. of fixed tools for front-end machining - 4
  • No. of turning tools - 5
  • Spindle indexing - 1°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 12mm
  • Motor Rating - 1.0 kW
  • Spindle speed - 6,000 RPM
  • No. of tools for back-end machining - 4

Driven tools

  • Number of tools - 3
  • Rotary tool power - 0.5 kW

Machine Overview

In addition to the 5 turning tools, the B12 VI also comes with 3 live cross tools and 4 front/back I.D. tools. This is the standard machine for the U.S. market.

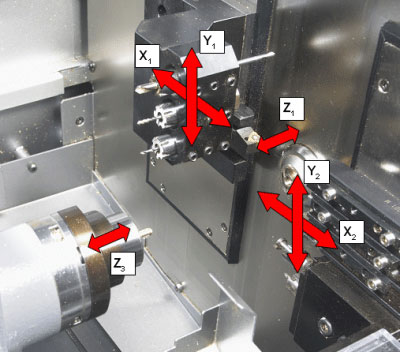

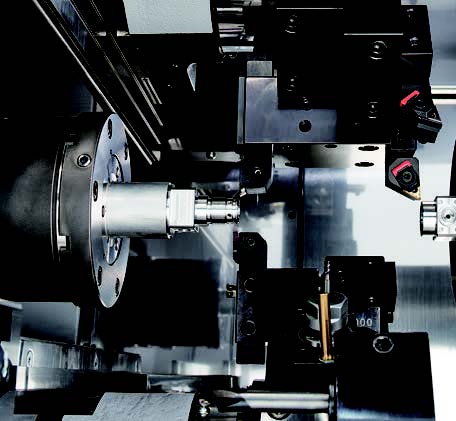

Cincom B12VI Work Area

Work Area

Vertical Holder

  • Up to 3 rotary tools and up to 5 turning tools available for turning, grooving, screwcutting, parting-off, milling etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.

Driven Tools

  • driven spindles for cross machining
  • 0.5kW, 4500RPM drive

Back Work Holder

  • 4 stationary spindles for front machining and 4 for back-machining.
  • Allows for some operations, such as drilling, to be carried out simultaneously with other operations.
close button

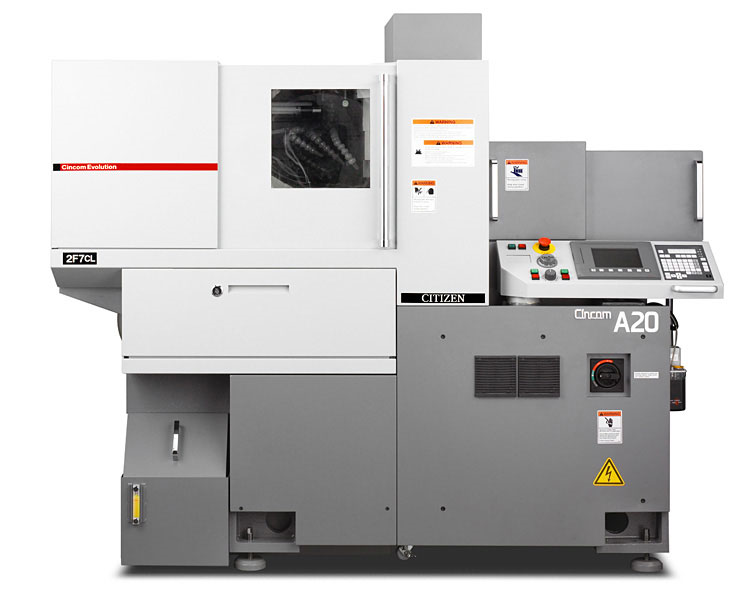

A320VII

Cincom A320VII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Rotary Guide Bushing Device
  • Cut-off tool breakage detection
  • Lighting
  • Workpiece separator
  • Lubricating oil supply unit with
    level Detector
  • Door lock
  • Pneumatic device for air sealing
  • Machine relocation Detector

Optional Accessories

  • Fixed guide bushing device
  • Knock-out jig for through-hole workpiece
  • Long workpiece unit
  • Workpiece conveyor
  • Chip Conveyor
  • Coolant flow rate Detector
  • Signal lamp
  • 3-color signal tower

Specifications

Number of axis - 7

Main spindle

  • Max. turning diameter - 20mm
  • Max. turning length (in one chucking) - 200mm
  • Spindle speed - 10,000RPM
  • Drive Rating - 3.7kW
  • No. of turning tools - 5
  • Number of tools for front-end machining - 4
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 20mm
  • Max. workpiece length - 80mm
  • Drive rating - 1.5kW
  • Spindle speed - 8,000RPM
  • Number of tools for back-end machining - 8
  • C-Axis - 0.001°

Driven Tools

  • No. of Driven Tools (transverse) - 4
  • Driven Tool Motor Power - 0.75kW
  • Driven Tool Max. Speed - 6,000RPM

Other Information

  • Axis rapid Traverse - 32m/min
  • Space Requirement - 2100x1185mm
  • Weight - 4,851

Machine Overview

Acclaimed for its excellent cost to performance ratio, the A20 has evolved as a 5-axis machine for ø20 mm applications with the advantage that it can be used with or without a guide bushing. Use as a regular guide bushing automatic lathe when machining long, slender workpieces or without a guide bushing for shorter parts with minimal bar end remnants. The guide bushing can be quickly and easily mounted or removed.

The performance of the machine has been improved too. The high speed 10,000 rpm spindle enables optimized machining operations on smaller diameter bar material. The machining length per chucking is now extended to 200 mm enabling the number of re-chuckings and therefore cycle times to be reduced when machining long workpieces. As an option, bar material of up to ø25 mm can also be machined extending the range of workpieces.

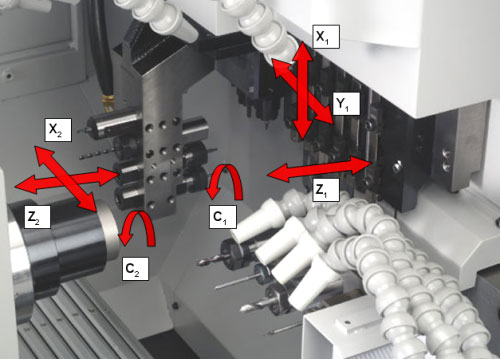

Cincom A20VII Work Area

Work Area

Vertical Tool Holder

  • 4 rotary cross-drilling / milling spindles and 5 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.
  • One cross tool can be replaced with one of:
    • BSE607: 3 front live end face
      • Front: F7 - M5 (ER11).
    • BSE707: 3 front / 3 back live end face
      • Front: F7 - M5 (ER11)
      • Back: F5 - M4 (ER11)

End Working Holder 1

  • 4 stations for front machining
  • 4 stations for back machining

End Working Holder 2

  • 4 fixed stations for back machining. With A220-U151B option, all 4 can be utilized for either live or fixed end working (4,500RPM / 0.75kW).
  • Optional GSS1330 Back Slitting and Cross-Drilling Spindle:
    • ER11, 3600RPM, 3/5 Gear Ratio
    • Adjustable 90° for cross-drilling
close button

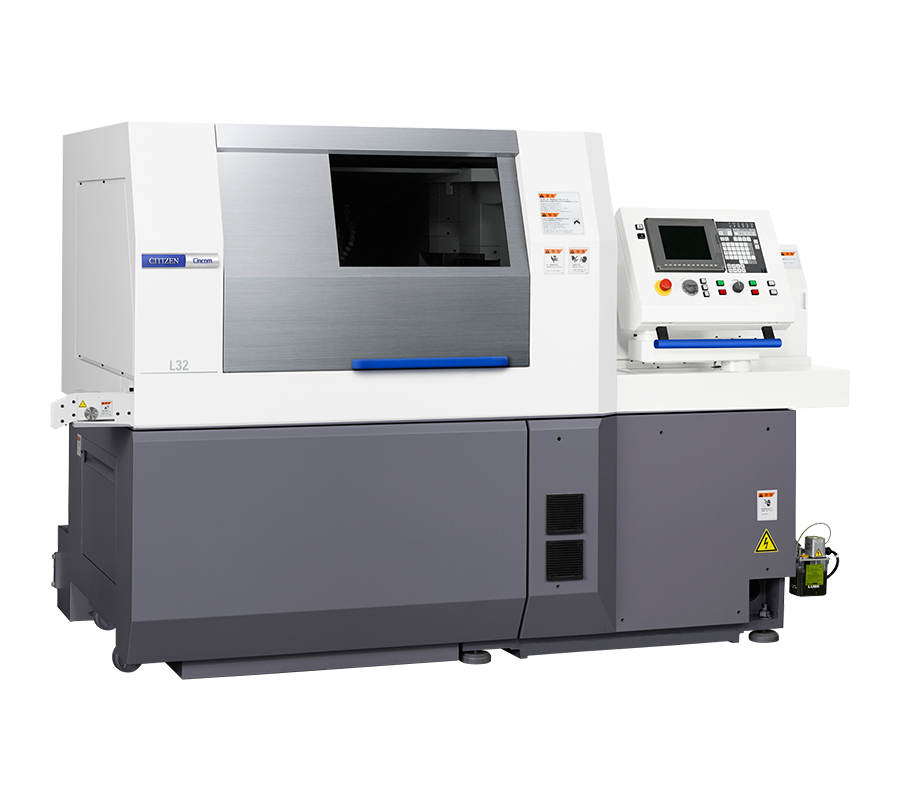

L32VIII

Cincom L32-VIII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Part-off Tool Breakage Detector(Probe type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Number of axis - 7

Main spindle

  • Max. turning diameter - 32mm up to 38mm with option
  • Max. turning length (in one chucking) - 320mm
  • Spindle speed - 8,000RPM
  • Drive Rating - 3.7/7.5kW
  • No. of turning tools - 6
  • Number of tools for front-end machining - 4
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm up to 38mm with option
  • Max. workpiece length for standard parts catcher - 150mm
  • Drive rating - 2.2kW/3.7kW
  • Spindle speed - 8,000RPM
  • Number of tools for back-end machining - 5
  • C-Axis - 0.001°

Driven Tools

  • No. of Driven Tools (transverse) - 5
  • Driven Tool Motor Power - 1.0kW
  • Driven Tool Max. Speed - 6,000RPM

Other Information

  • Axis rapid Traverse - 32m/min
  • Weight - 6,283 lbs

Machine Overview

With a legacy as one of the best-selling Cincom machines, the next-generation L32 is launched with 3 models in modular design.

The L32-VIII is a 7-axis model with excellent cost performance. A wide range of modular tooling ensures that the new L32-VIII is both versatile and flexible enough to meet your production demands into the future.

Up to 30 tools can be mounted at any one time supported by a very high level of control features, stable, powerful, and highly productive with versatility of modular design.

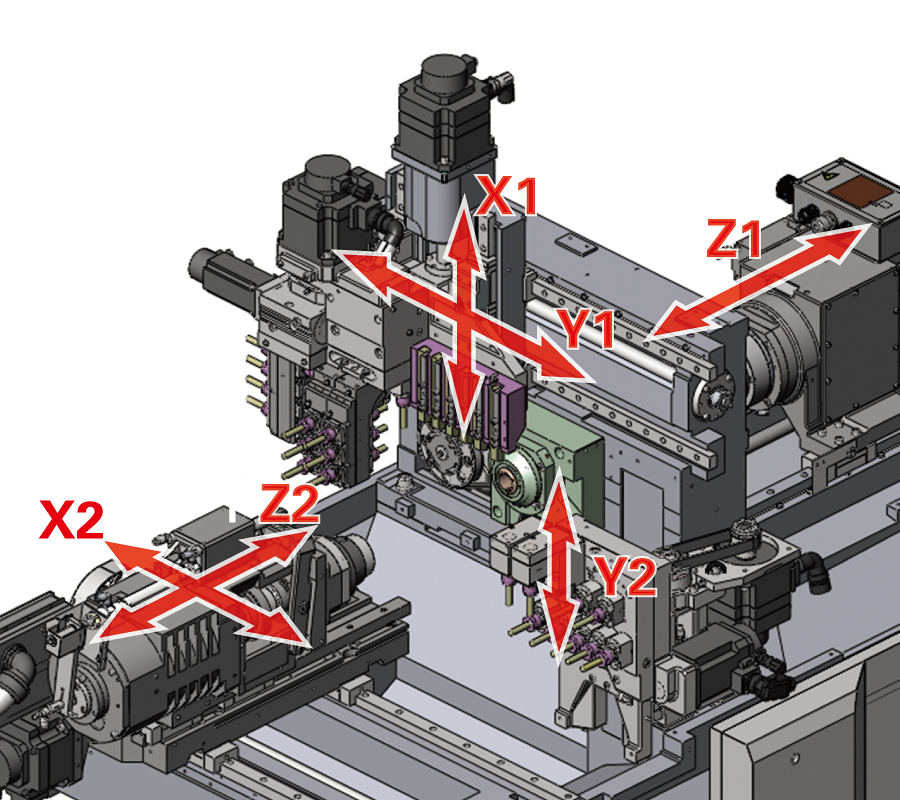

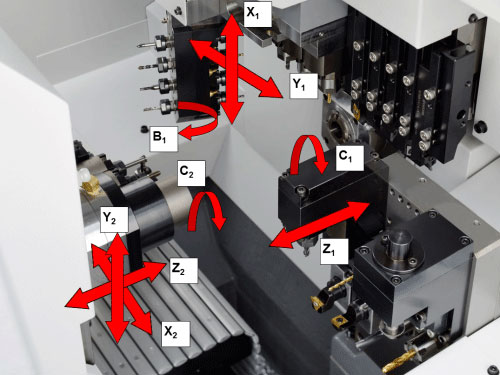

Cincom 32 Work Area

Work Area

Vertical Tool Holder

  • 5 rotary cross-drilling / milling spindles and 6 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.

Front End Working Block

  • Standard: 4 fixed stations for front machining
  • Optional Block: 3 driven tools for front machining (6,000rpm / 1kW)

Back End Working Block

  • Standard:5 fixed stations for front machining
  • Optional Block:> 4 out of the 5 can be utilized for either lie or fixed end working. ER16 Max 6,0003 driven tools for front machining (6,000rpm / 1kW)
close button

L32X

Cincom L32-X

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Part-off Tool Breakage Detector(Probe type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Number of axis - 8

Main spindle

  • Max. turning diameter - 32mm up to 38mm with option
  • Max. turning length (in one chucking) - 320mm
  • Spindle speed - 8,000RPM
  • Drive Rating - 3.7/7.5kW
  • No. of turning tools - 6
  • Number of tools for front-end machining - 4
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm up to 38mm with option
  • Max. workpiece length for standard parts catcher - 150mm
  • Drive rating - 2.2/3.7kW
  • Spindle speed - 8,000RPM
  • Number of tools for back-end machining - 9
  • C-Axis - 0.001°

Driven Tools

  • No. of Driven Tools (transverse) - 5
  • Driven Tool Motor Power - 1.0kW
  • Driven Tool Max. Speed -6,000RPM

Other Information

  • Axis rapid Traverse - 32m/min (Y2 axis=24m/min)
  • Weight - 6,393 lbs

Machine Overview

With a legacy as one of the best-selling Cincom machines, the next-generation L32 is launched with 3 models in modular design.

The L32-X is an 8-axis model including two Y axis. A wide range of modular tooling ensures that the new L32-X is both versatile and flexible enough to meet your production demands into the future.

Up to 44 tools can be mounted at any one time supported by a very high level of control features, stable, powerful, and highly productive with versatility of modular design.

Cincom L32 Work Area

Work Area

Vertical Tool Holder

  • 5 rotary cross-drilling / milling spindles and 6 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.

Front End Working Block

  • Standard:4 fixed stations for front machining.
  • Optional Block: 3 driven tools for front machining (6,000 / 1kW)

Back End Working Block

  • Standard:9 end working positions.
  • 4 out of the 9 stations can be rotary face or cross working. tools.
close button

L32XII

Cincom L32-XII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Part-off Tool Breakage Detector(Probe type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Number of axis - 9

Main spindle

  • Max. turning diameter - 32mm up to 38mm with option
  • Max. turning length (in one chucking) - 320mm
  • Spindle speed - 8,000RPM
  • Drive Rating - 3.7/7.5kW
  • No. of turning tools - 6
  • Number of tools for front-end machining - 4
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm up to 38mm with option
  • Max. workpiece length for standard parts catcher - 150mm
  • Drive rating - 2.2/7.5kW
  • Spindle speed - 8,000RPM
  • Number of tools for back-end machining - 9
  • C-Axis - 0.001°

Driven Tools

  • No. of Driven Tools (transverse) - 7
  • Driven Tool Motor Power - 1.0kW
  • Driven Tool Max. Speed - 6,000RPM

Other Information

  • Axis rapid Traverse - 32m/min (Y2 axis = 24m/min)
  • Weight - 6,393 lbs

Machine Overview

With a legacy as one of the best-selling Cincom machines, the next-generation L32 is launched with 3 models in modular design.

The L32-XII is a 9-axis model including two Y axis and B axis control. A wide range of modular tooling ensures that the new L32-XII is both versatile and flexible enough to meet your production demands into the future.

Up to 40 tools can be mounted at any one time supported by a very high level of control features, stable, powerful, and highly productive with versatility of modular design.

Cincom L32 Work Area

Work Area

Vertical Tool Holder

  • 5 rotary cross-drilling / milling spindles and 6 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.

Front End Working Block

  • Standard: 4 fixed stations for front machining
  • Optional Block: 3 driven tools for the front machining (6,000rpm /1kW)

Back End Working Block

  • Standard: 9 end working stations. 4 out of the 9 stations can be rotary face or cross working tools
close button

K16EVII

Cincom K16EVII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options

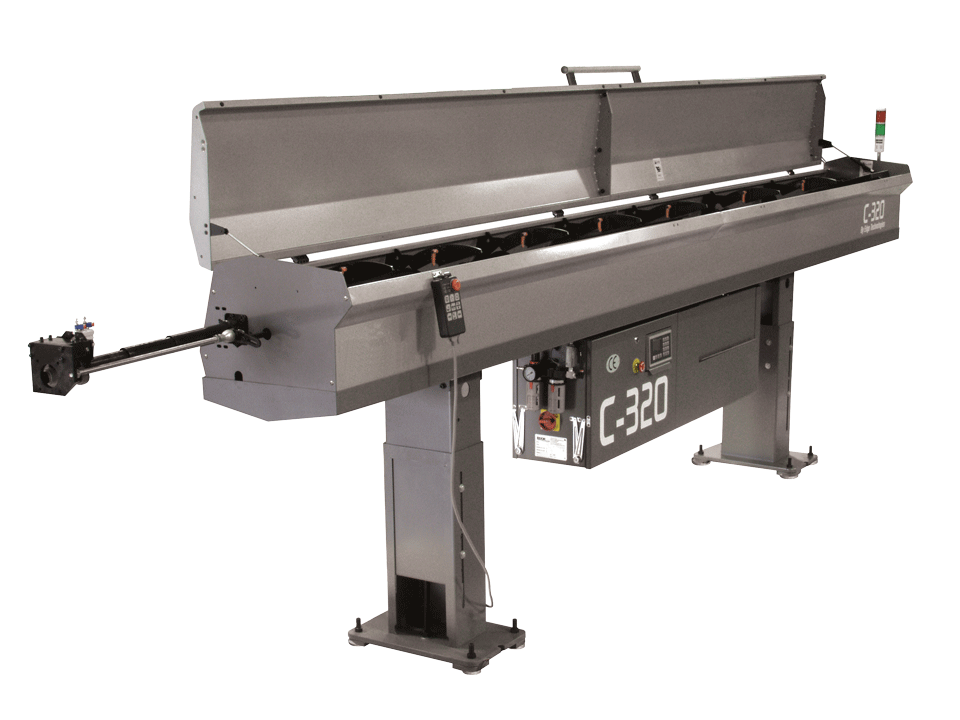

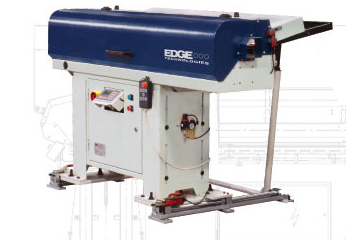

  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unt
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 16mm
  • Motor Rating - 2.2 / 3.7kW
  • Spindle speed - 15,000RPM
  • No. of fixed tools for front-end machining - 4
  • C-axis - 0.001°
  • No. of turning tools - 6

Sub-spindle - AC motor

  • Maximum workpiece diameter - 16mm
  • Motor Rating - 0.4 / 0.75kW
  • Spindle speed - 10,000RPM
  • No. of tools for back-end machining - 3
  • No. of driven tools for back-end machining - 3
  • C-axis - 0.001°

Driven tools

  • Number of tools - 4 crossworking tools
  • Rotary tool power - 0.4kW
  • Rotary tool speed - 6,000RPM

Machine Overview

This state of the art Swiss turning center proves its worth in every aspect, particularly in the production of high-accuracy, complex parts up to 16mm diameter in small to medium batch sizes. A rigid machine bed combined with exceptional thermal stability ensures the precision of the machine.

Featuring the ALL axis simultaneous Cincom System M7 Control (Mitsubishi Meldas 70LPC), its standard seven cutting axes (X1, Y1, Z1, X2, Z2, C1, C2) and one loader axis (A7) can make easy work of your toughest applications and reduce idle times by 40% to 50%. The user-friendly editing function which utilizes multi-line, multi-axes programming, along with superimposed and synchronized control, make setting up the most complex jobs easy.

With its small footprint of just 3.7 × 6.2 ft, the K16E offers a very compact and space saving design.

Cincom K16E Work Area

Work Area

Vertical Holder

  • Up to 10 rotary tools and up to 6 turning tools available for turning, grooving, screwcutting, parting-off, milling etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.

Back Work Holder

  • 3 stationary spindles or rotary spindles for back machining.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.

Front Work Holder

  • 4 stationary spindles for front machining
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
close button

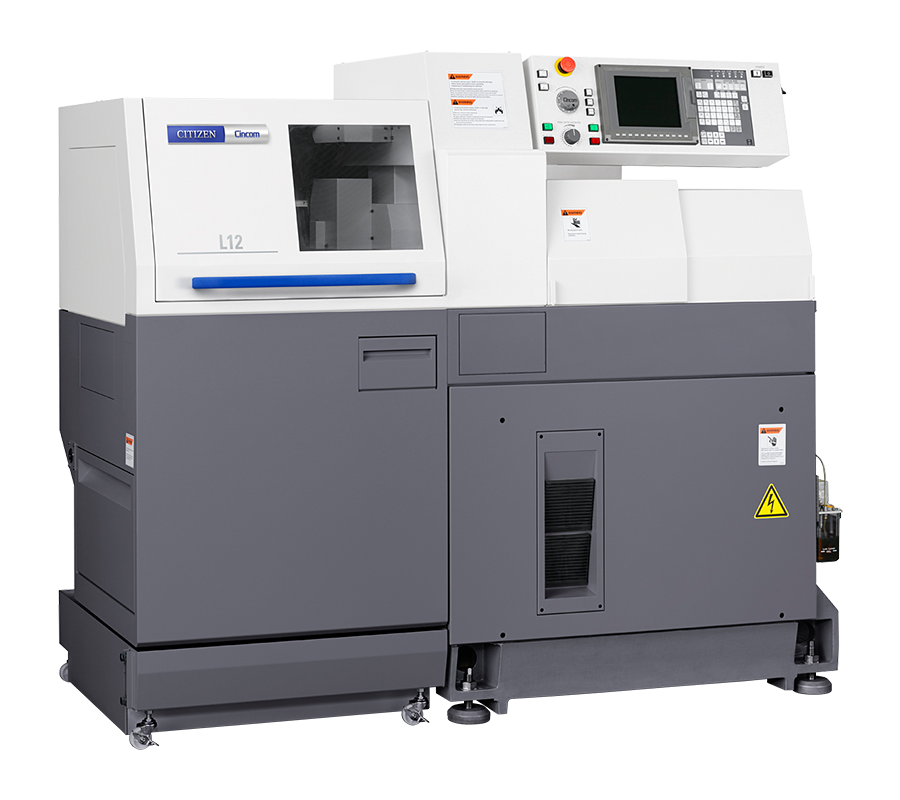

L12VII

Cincom L12VII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Medium Pressure Coolant Supply Unit
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 12mm
  • Motor Rating - 2.2 / 3.7kW
  • Spindle speed - 15,000
  • No. of fixed tools for front-end machining - 4
  • No. of cross rotary tools - 4
  • Rotary tool power - 0.75kW
  • Rotary tool speed - 10,000RPM
  • No. of turning tools - 6
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 12mm
  • Motor Rating - 0.4 / 0.75kW
  • Spindle speed - 10,000RPM
  • No. of tools for back-end machining - 4 (8)
  • No. of driven tools for back-end machining - 4
  • Rotary tool power - 0.75kW
  • Rotary tool speed - 9,000RPM
  • C-axis - 0.001°

Machine Overview

The new L12-VII, including Switchable Guide Bush System allows the ‘best of both worlds’ for efficient machining of both long and short workpieces

Flexible tooling options available including fixed and rotary tools for front \ back-machining as well as 0-30° adjustable angle rotary tool post.

High speed 15,000RPM main spindle with 3.7kW motor - sub spindle 10,000RPM \ 0.75kW.

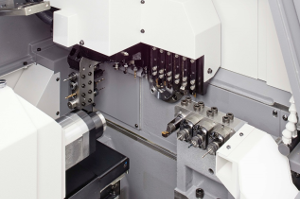

Cincom L12VII Work Area

Work Area

Vertical Holder

  • Vertical holder with 6 turning tools
  • Gang rotary tools:
    • ER11 10mm offset 2 stations
    • ER8 5mm offset 1 station
    • 10,000RPM 0.75kW

Front / back machining holder

  • Fixed 8 position (4 front / 4 back drilling holder)
  • 0-30° adjustable angle 6 position (3 front / 3 back) rotary tool post.
  • 10000RPM 0.75kW drive

Back Working Holder

  • 4 fixed / rotary spindles for back machining
  • Rotary tools drive 9,000RPM / 0.5kW
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
  • ER11
close button

L220X

Cincom L220X

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 20mm up to 25mm (.984) with option
  • Max. Turning Length (no rechucking) - 200mm
  • Motor Rating - 2.2/3.7kW
  • Spindle speed range - 200-10,000RPM
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 20mm (.984) with option
  • Motor Rating - 0.75/1.5kW
  • Spindle speed range - 200-8,000RPM
  • Spindle Indexing - 1°
  • C-axis - 0.001°

Tools

  • Number of turning tools - 5
  • Number of drilling / boring tools - front - 6(14)
  • Number of back operation tools - 8(16)
  • Number of rotary tools - cross - 5(14)
  • Number of rotary tool positions cross/front face - 3/3 (5/21)
  • Rotary tool power - 1kW
  • Rotary tool speed range - 200-5,000RPM

The Cincom L220X offers increased tool flexibilty with up to 44 tools capability featuring two Y-axis.

The back working tool post utilizes Y-axis for up to 8 fixed or rotary, end face or cross working tool holders for increased overlapping machining capability.

Another major feature is the ability to switch between guide bushing and guide bushing-less type. This feature is provided as standard; the guide bushing can be fitted or removed very quickly with a simple operation.

The user-friendly editing function which utilizes multi line, multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.

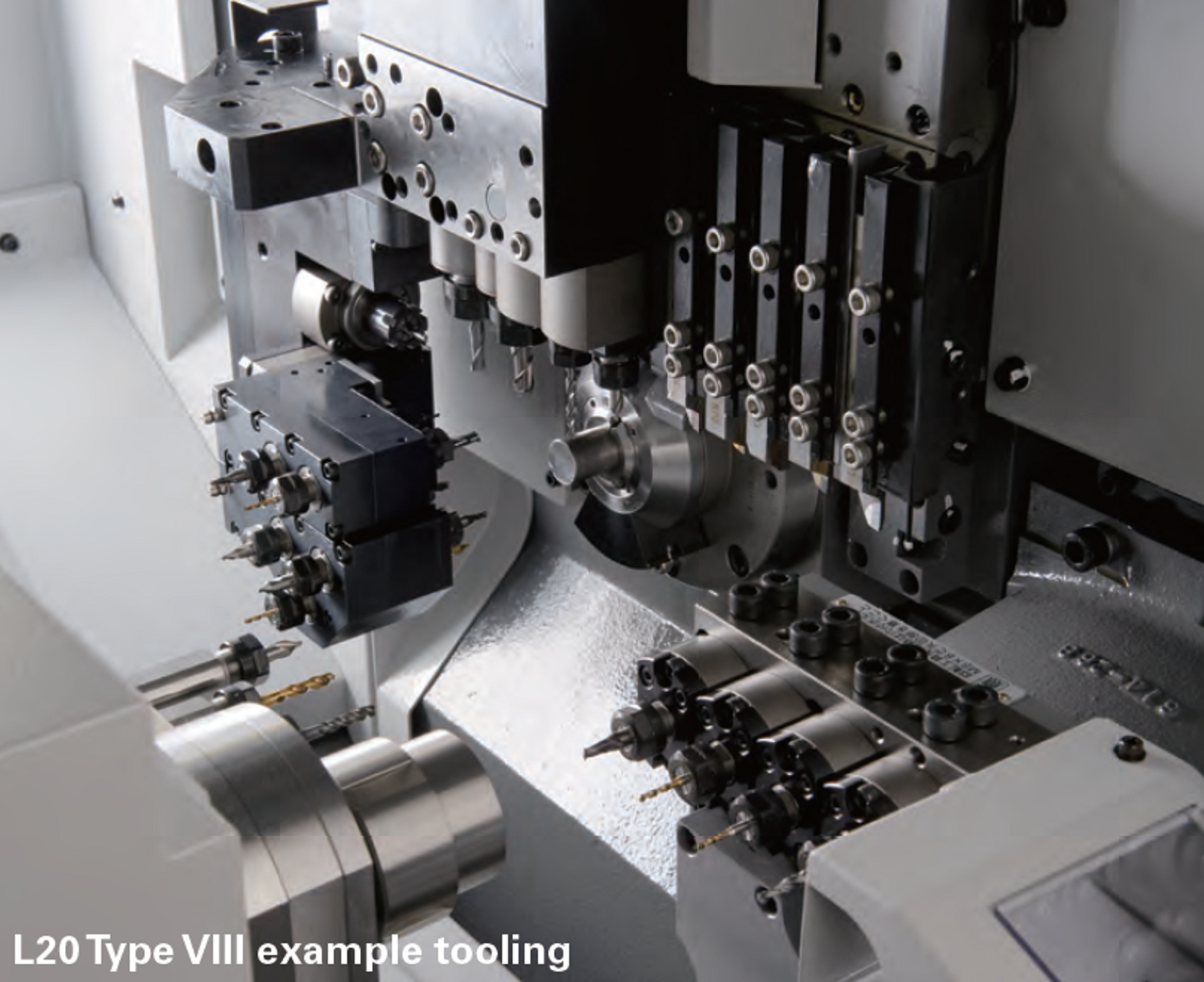

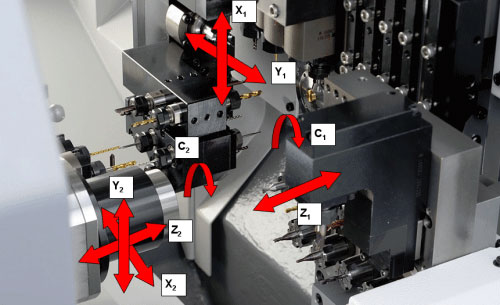

Cincom L20X Work Area

Work Area

Vertical Holder

  • 7 rotary spindles ( 3 can be swiveled 90 deg between cross and end face machining) and 5 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools rated at 1kW / 6,000RPM.
  • Tooling arrangements allow extra cross rotary tools, extra turning tools or extra end-working rotary tools depending on your priorities.

Front / Back Machining Holders

  • 6 fixed end-working positions (3 front / 4 back) as standard (8 optional 3 front / 5 back).
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simulataneously with other operations.
  • Optionally sub spindle opposed toolpost can be fitted with up to 4 rotary tools (0.4kW, 5,000RPM).
close button

L220X

Cincom L20X

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 20mm up to 25mm (.984) with option
  • Max. Turning Len. (no rechucking) - 200mm
  • Motor Rating - 2.2/3.7kW
  • Spindle speed range - 200-10,000RPM
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 20mm up to 25mm (.984) with option
  • Motor Rating - 0.75 / 1.5kW
  • Spindle speed range - 200-8,000RPM
  • Spindle Indexing - 1°
  • C-axis - 0.001°

Tools

  • Number of turning tools - 5
  • Number of drilling/boring tools-front - 6(14)
  • Number of back operation tools - 8(16)
  • Number of rotary tools-cross - 5(14)
  • Number of rotary tool positions face - 5(21)
  • Rotary tool power - 1kW
  • Rotary tool speed range - 200-6,000RPM

Machine Overview

The L220X offers increased tool flexibility with up to 44 tools capability featuring 2 Y-axis.

The back working tool post utilizes Y-axis for up to 8 fixed or rotary, end-face or cross working tool holders for increased overlapping machining capability.

Another major feature is the ability to switch between guide bushing and guide bushing-less type. This feature is provided as standard; the guide bushing can be fitted or removed very quickly with a simple operation.

The user-friendly editing function which utilizes multi line, multi axis programming, along with superimosed and synchronized control make setting up the most complex jobs easy.

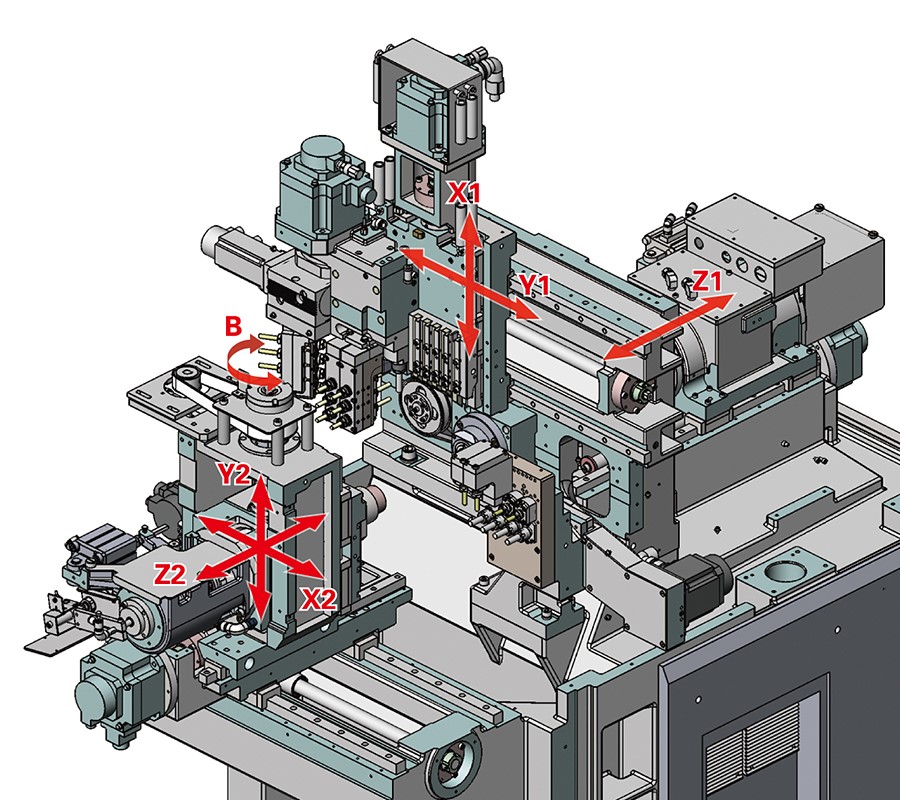

Cincom L20X Work Area

Work Area

Vertical Holder

  • 7 rotary spindles (3 can be swiveled 90 deg. between cross and end facing machining) and 5 turning tools fitted as standard for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools rated at 1kW / 6,000RPM.
  • Tooling arrangements allow extra cross rotary tools, extra turning tools or extra end-working rotary tools depending on your priorities.

Front / Back Machining Holders

  • Front Machining Post
    • 6 front working positions as standard (up to 3 rotary tools, 0.75kW/7,500RPM)
    • Y-axis as standard to enable simultaneous control of gang and front machining post.
    • Allows operations such as drilling, tapping, screw-cutting, boring and turining to be carried out simultaneously with other operations.
  • Back Machining Post
    • 4 fixed/4 rotary back-working positions with 2 rotary GSE3507 as standard.
    • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
close button

L220VIII

Cincom L220VIII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 20mm up to 25mm (.984") with option
  • Max. Turning Len. (no rechucking) - 200mm
  • Motor Rating - 2.2/3.7kW
  • Spindle speed range - 200-10,000RPM
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 20mm up to 25mm (.984") with option
  • Motor Rating - 0.75 / 1.5kW
  • Spindle speed range - 200-8,000RPM
  • Spindle Indexing - 1°
  • C-axis - 0.001°

Tools

  • Number of turning tools - 5
  • Number of drilling/boring tools-front - 6(14)
  • Number of back operation tools - 8(16)
  • Number of rotary tools-cross - 5(14)
  • Number of rotary tool positions front face - 3(13)
  • Rotary tool power - 1kW
  • Rotary tool speed range - 200-6,000RPM

Machine Overview

The new L220-VIII offers increased flexibility with up to 37 tools.

The back working tool post utilizes up to 4 fixed or rotary tool holders for increased over lapping machining capabilites.

Another major feature is the ability to switch between guide bushing type and guide bushing-less type. This feature is provided as standard; the guide bushing can be fitted or removed very quickly with a simple operation.

Cincom L220VIII Work Area

Work Area

Vertical Holder

  • 7 rotary spindles (3 can be swiveled 90 deg. between cross and end face machining) and 5 Turning tools fitted as standard for turing, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools rated at 1kW / 6,000RPM.
  • Tooling arrangements allow extra cross rotary tools, extra turning tools or extra end-working rotary tools depending on your priorities.

Front Machining Post

  • 3 front-working positions as standard.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.

Back Machining Post

  • 4 back-working positions with 2 rotary GSE3507 as standard.
  • Back machining rotary tools rated at .75kW / 7,500 RPM
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
close button

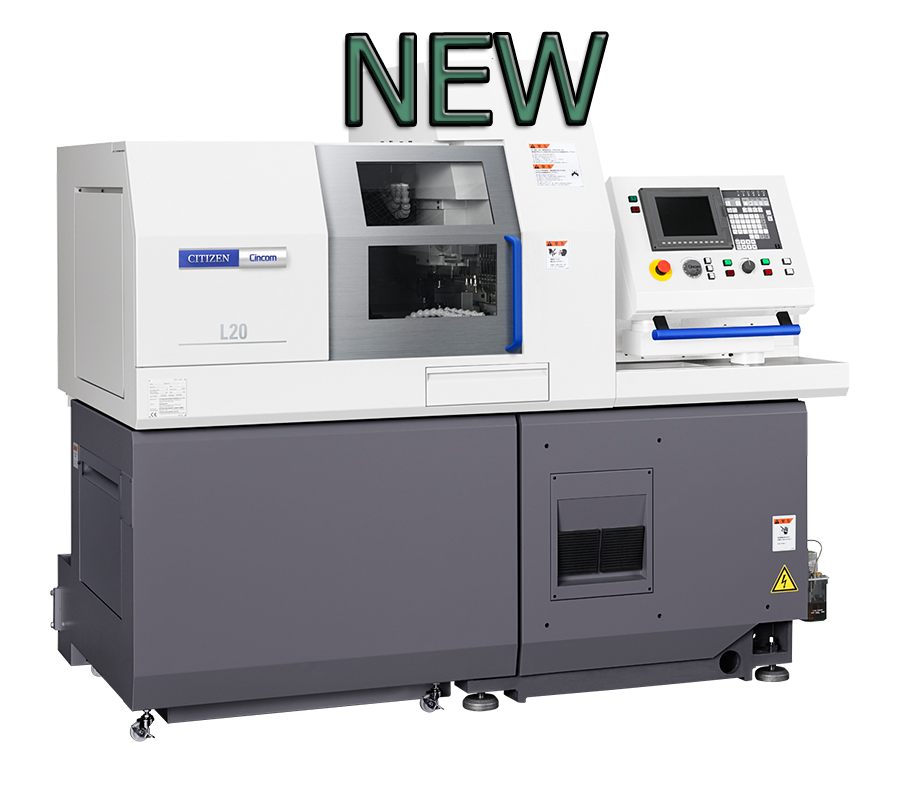

L220XII

Cincom L220XII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)

Specifications

Main spindle - AC motor

  • Bar Capacity - 20mm up to 25mm (.984") with option
  • Max. Turning Len. (no rechucking) - 200mm
  • Motor Rating - 2.2 / 3.7kW
  • Spindle speed range - 200-10,000RPM
  • C-axis - 0.001°

Sub-spindle - AC motor

  • Maximum workpiece diameter - 20mm up to 25mm (.984") with option
  • Motor Rating - 0.75/1.5kW
  • Spindle speed range - 200-8,000RPM
  • Spindle Indexing - 1°
  • C-axis - 0.001°

Tools

  • Number of turning tools - 5(7)
  • Number of drilling / boring tools-front - 6(14)
  • Number of back operation tools - 8(16)
  • Number of rotary tools-cross - 5(14)
  • Number of rotary tool positions face - 5(21)
  • Rotary tool power - 1kW
  • Rotary tool speed range - 200-6,000RPM
  • Rotary tool speed range of B-axis - 200-8,000RPM

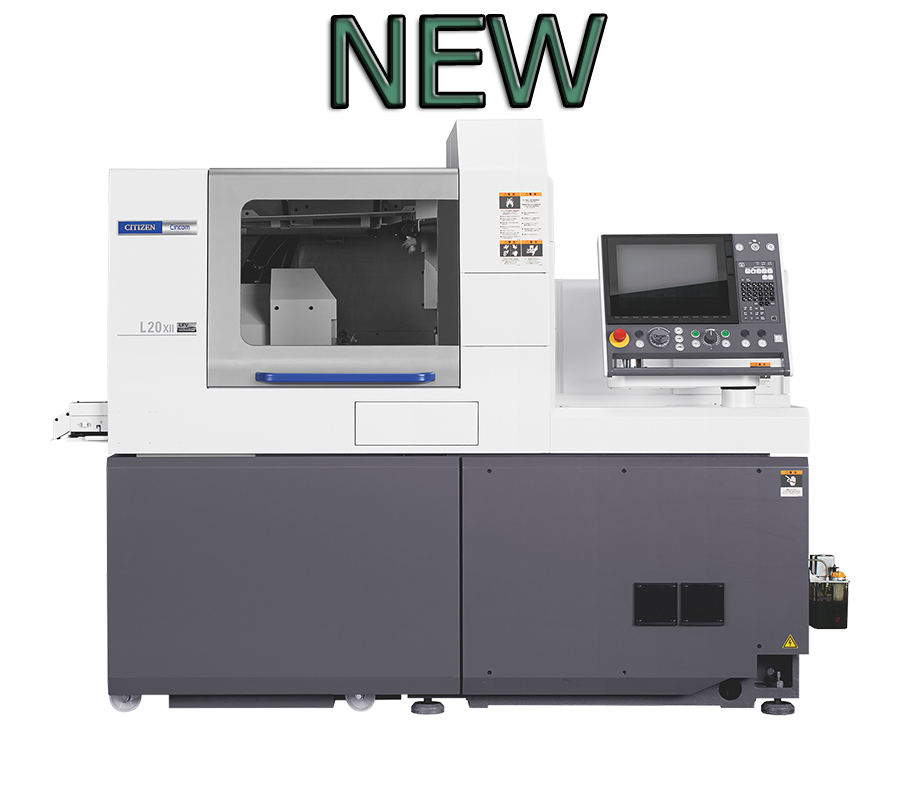

Cincom's best-selling L series machines have been re-launched with exciting new functions. The rotary tools on the gang tool post feature B-axis control. Allowing for drilling drilling and milling of angle features, and contouring with and milling of angeled features in addition to contouring with simultaneous 4-axis control. The swivel angle of 135°, from 90° to -45° enables the B-axis to be used for both front and back machining.

Another major feature is the ability to switch between a guide busing type and guide bushing-less type. This feature is provided as standard and the guide bushing can be fitted or removed very quickly with a simple operation.

Also featured is Y2 axis control on the opposite tool post for increased flexibility.

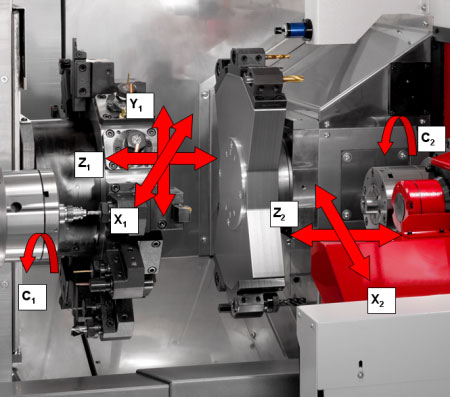

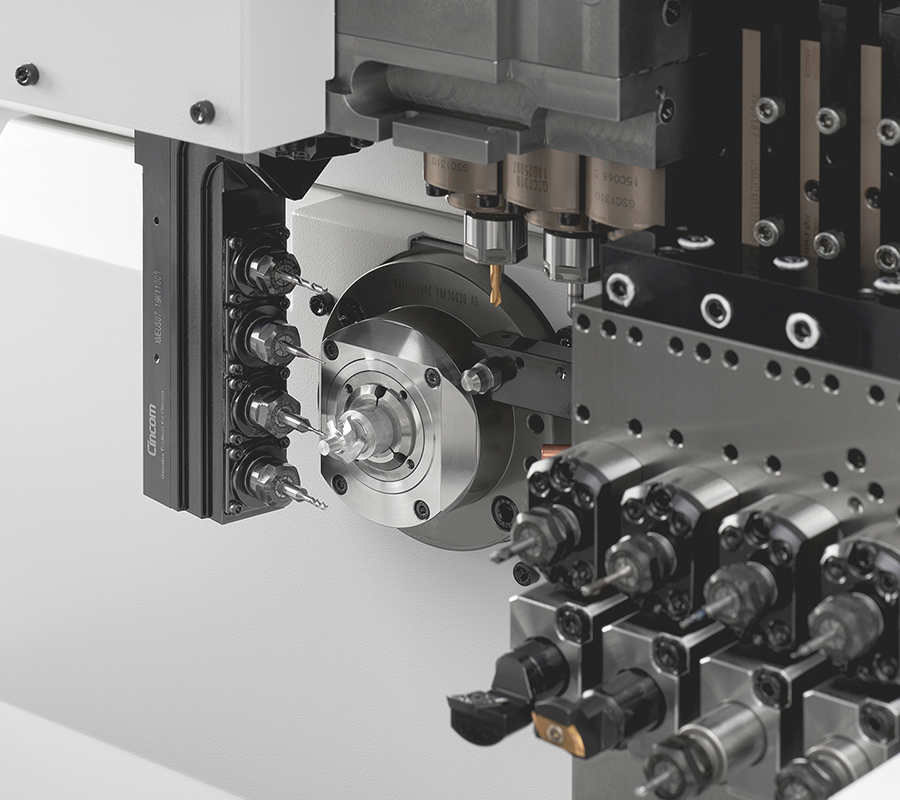

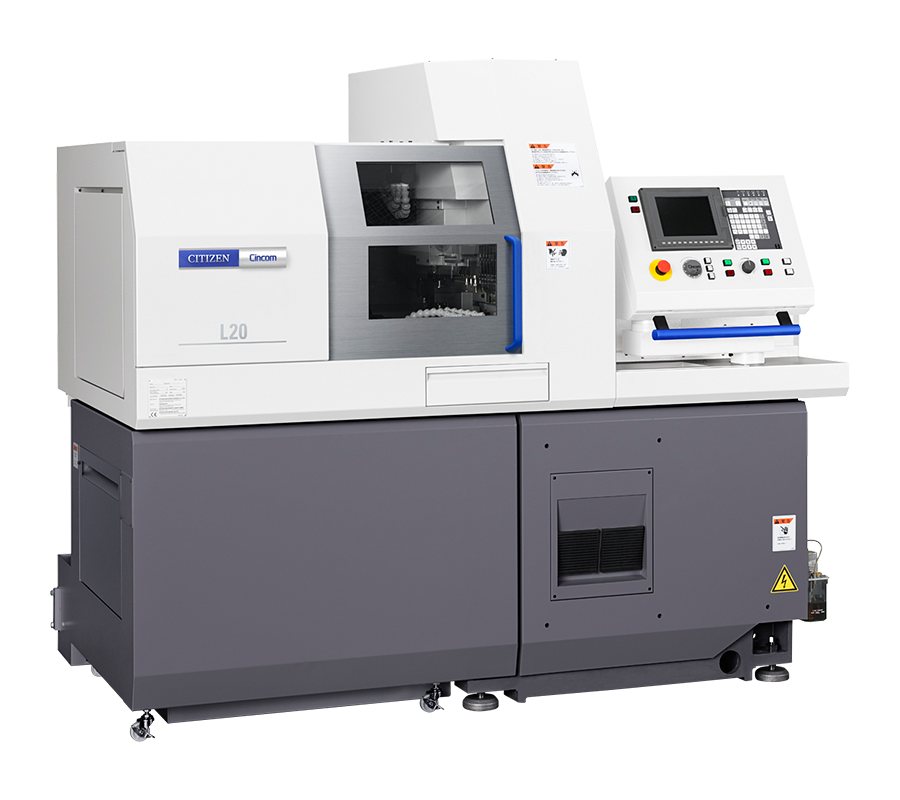

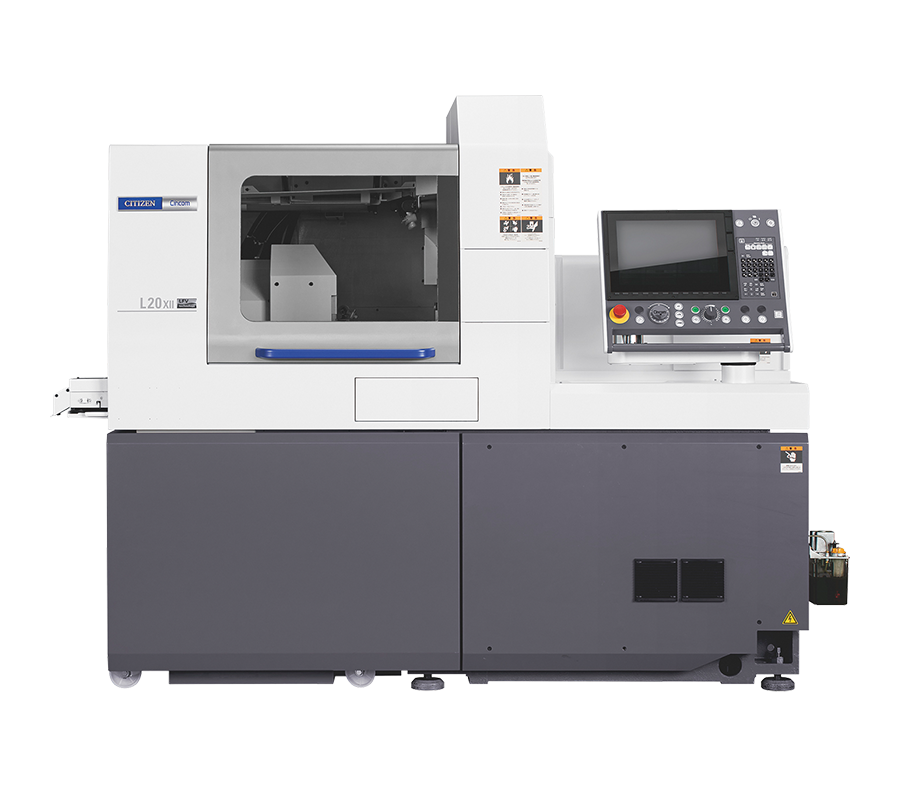

Cincom L20XII Work Area

Work Area

Vertical Holder

  • 5 Turning and 11 rotary drive positions (8 of which can be swivelled using B axis) fitted as standard.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools rated at 1kW / 6,000RPM.
  • The B Axis is the slant axis in reference to the Y axis direction.
  • Rotary tools incorporating a B axis can continuously change the angle (-45° to +90°) for angled holes on both front and back of the part.

Front Machining Post

  • 6 fixed front-working positions as standard.
  • Up to 3 rotary tools (0.75kW, 7,500RPM).
  • Y-Axis as standard to enable simultaneous control of gang and front machining post.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.

Back Machining Post

  • 4 fixed back-working positions and 4 rotary (0.75kW) end working positions as standard.
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously with other operations.
close button

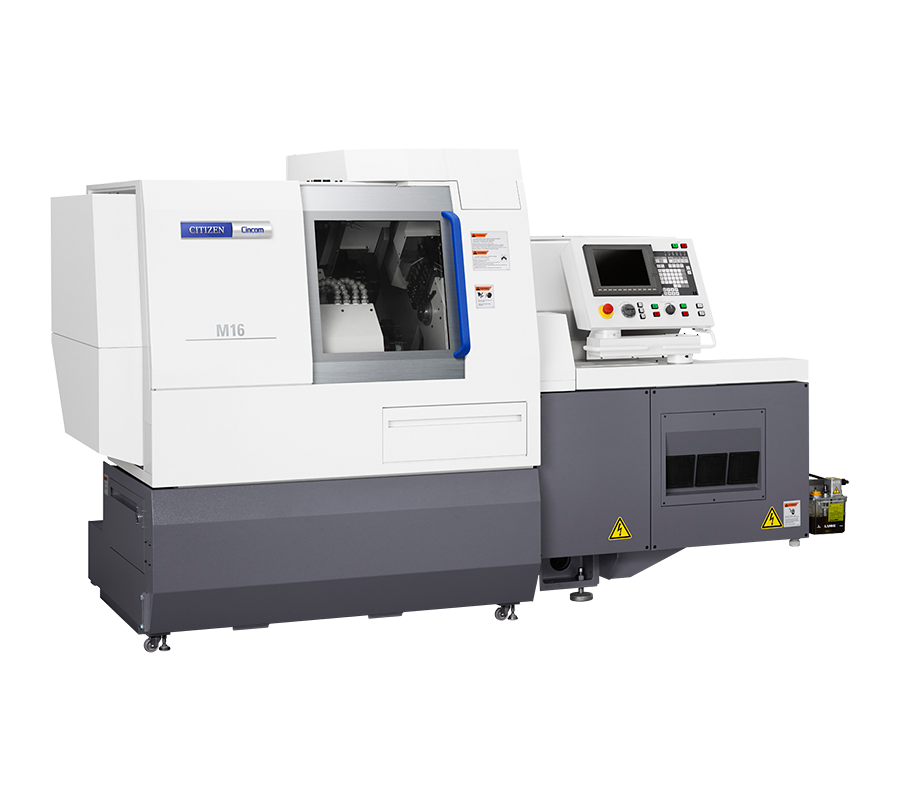

M416V

Cincom M416V

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Workpiece conveyor
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 16mm
  • Max. turning length - 200mm
  • Spindle through-hole diameter - 16mm
  • Main spindle speed - 200-12,000RPM
  • Main spindle drive power - 2.2 / 3.7kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 16mm
  • Motor rating - 0.75 / 1.5kW
  • Sub-spindle speed - 200-12,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 5
  • Driven Tool Power - 0.69kW
  • Speed of tools - 200-8,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 5

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 0.69kW
  • Speed of driven tools - 200-8,000RPM

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space! Even greater value!

The M16 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M16 our success story in the new century. New advanced functions over the previous generation include an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

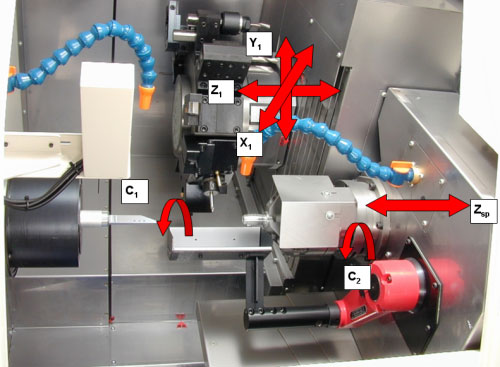

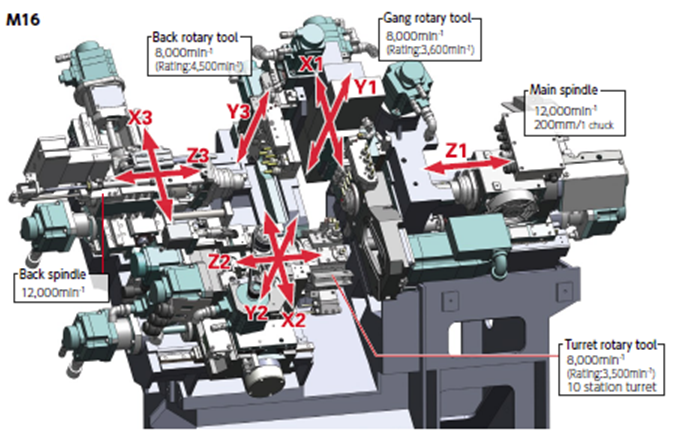

Cincom M416 Work Area

Work Area

Vertical Holder

  • 5 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.

Turret

  • Allows Front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (8,000RPM and .69kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • Can accommodate 5 fixed drill sleeves
close button

M416VIII

Cincom M416VIII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 16mm
  • Max. turning length - 200mm
  • Spindle through-hole diameter - 16mm
  • Collet Type - TF20
  • Main spindle speed - 200-12,000RPM
  • Main spindle drive power - 2.2 / 3.7kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 16mm
  • Motor rating - 0.75 / 1.5kW
  • Sub-spindle speed - 200-12,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools - 5
  • Number of rotary tools - 7
  • Driven Tool Power - 0.69kW
  • Speed of tools - 200-8,000RPM

Opposed Tool Post

  • Fixed tools for back machining - Up To 9
  • Driven tools for back machining - Up To 9
  • Y Axis - Yes

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 0.69kW
  • Speed of driven tools - 200-8,000RPM

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space!

Even greater value!

The M16 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all-round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M16 our success story in the new century. The next generation M16 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven). New advanced functions include a B axis on the gang tool post with 4 axis simultaneous containing control. In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Cincom M416 Work Area

Work Area

Vertical Holder

  • 4 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • The B Axis is the slant axis in reference to the Y axis direction.
  • Rotary tools incorporating a B axis can continuously change the angle (-10° to +105°) for angled holes.
  • Contouring with simultaneous 4-axis control is also possible.

Turret

  • Allows front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (8,000RPM and 0.75 / 1.5kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • Can accommodate holders at 3 positions (2 for rotary tool specifications – 1.5kW / 8000rpm and 1 for fixed tool specifications)
  • Up to 9 tools can be fitted.
  • Back tool post using Y3 axis in combination with the sub spindle X3 and Z3 axes allows the following operations to be carried out simultaneously with other operations.
  • Allows operations such as drilling (face / cross), tapping (face / cross), screw-cutting, boring, interpolation, PCD and turning to be carried out simultaneously with other operations.
close button

M420V

Cincom M420V

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control Unit
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 20mm(up to 32mm with option)
  • Max. turning length - 320mm
  • Spindle through-hole diameter - 36mm
  • Main spindle speed - 200-8,000RPM
  • Main spindle drive power - 3.7 / 7.5kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 20mm(up to 32mm with option)
  • Motor rating - 2.2 / 3.7kW
  • Sub-spindle speed - 200-8,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 5
  • Driven Tool Power - 1kW
  • Speed of tools - 200-6,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 5

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 1.5 / 2.2kW
  • Speed of driven tools - 200-6,000RPM

Other Information

  • Space requirement (without bar feeder) - 3,400 x 1,410 x 1,900mm
  • Weight - 3,300kg

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space!

Even greater value!

The M series is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M series our success story in the new century. New advanced functions over the previous generation include an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Work Area

Vertical Holder

  • 5 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Rotary tools can be set manually to a fixed angle of -0° to +90° for angled holes.

Turret

  • Allows Front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (6,000RPM and 1.5 / 2.2kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • U150B can accommodate 5 fixed drill sleeves (25.4mm dia.)
  • Pitch centers of 50mm and 35mm
close button

M432VII

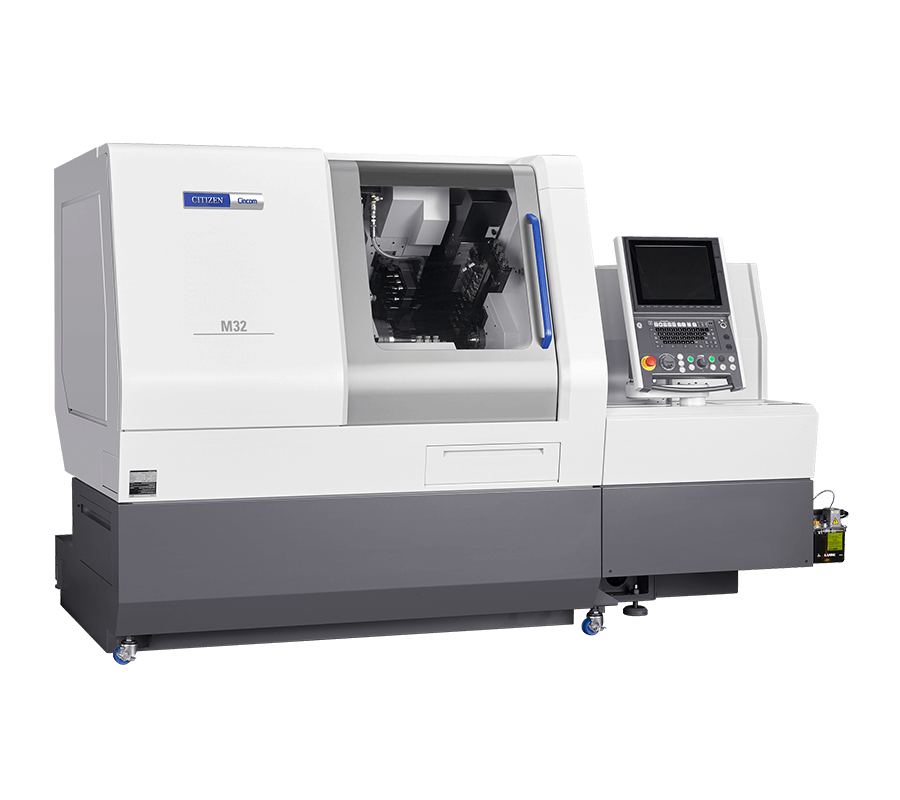

Cincom M432VII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 32mm
  • Max. turning length - 320mm
  • Spindle through-hole diameter - 36mm
  • Main spindle speed - 200-8,000RPM
  • Main spindle drive power - 3.7 / 7.5kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm
  • Motor rating - 2.2 / 3.7kW
  • Sub-spindle speed - 200-8,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 7
  • Driven Tool Power - 1kW
  • Speed of tools - 200-6,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 3
  • Driven tools for back machining - up to 6
  • Y Axis - Yes

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 1.5 / 2.2kW
  • Speed of driven tools - 200-6,000RPM

Other Information

  • Space requirement (without bar feeder) - 3,400 x 1,410 x 1,900mm
  • Weight - 3,400kg

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space!

Even greater value!

The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. The next generation M32 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven). New advanced functions include a B axis on the gang tool post with 4 axis simultaneous containing control. In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Work Area

Vertical Holder

  • 7 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • The B Axis is the slant axis in reference to the Y axis direction.
  • Rotary tools incorporating a B axis can continuously change the angle (-10° to +105°) for angled holes.
  • Contouring with simultaneous 4-axis control is also possible.

Robotic Turret

  • Allows Front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (6,000RPM and 1.5 / 2.2kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • Can accommodate holders at 3 positions (2 for rotary tool specifications – 1kW / 6000rpm and 1 for fixed tool specifications)
  • Up to 9 tools can be fitted.
  • Back tool post using Y3 axis in combination with the sub spindle X3 and Z3 axes allows the following operations to be carried out simultaneously with other operations.
  • Allows operations such as drilling (face / cross), tapping (face / cross), screw-cutting, boring, interpolation, PCD and turning to be carried out simultaneously with other operations.
close button

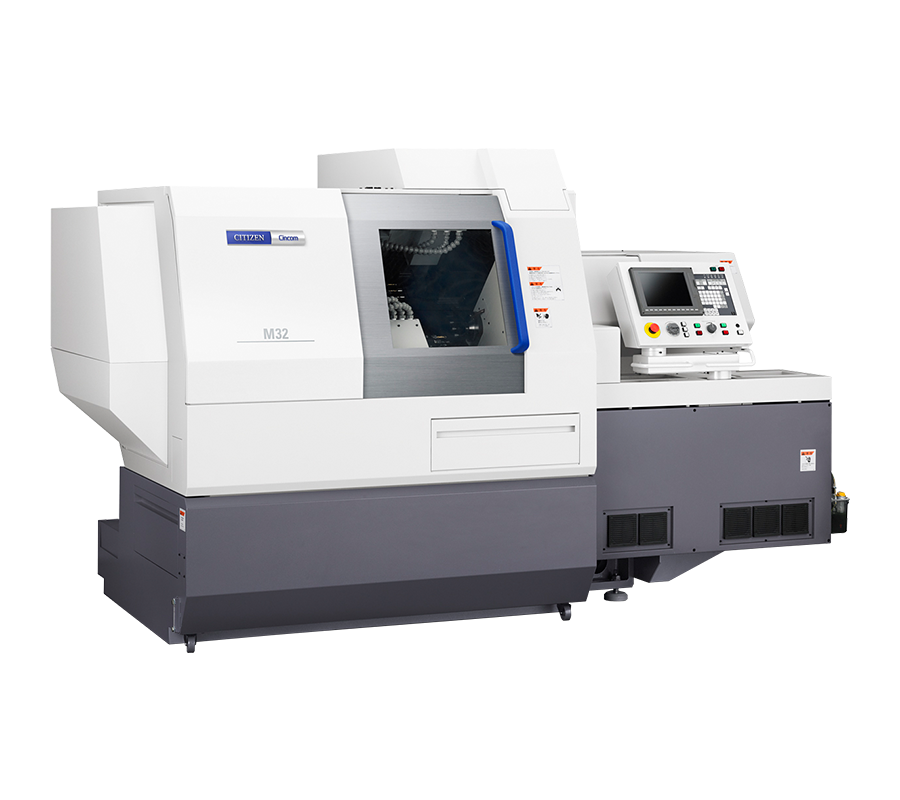

M432III

Cincom M432III

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 32mm
  • Max. turning length - 320mm
  • Spindle through-hole diameter - 36mm
  • Main spindle speed - 200-8,000RPM
  • Main spindle drive power - 3.7 / 7.5kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm
  • Motor rating - 2.2 / 3.7kW
  • Sub-spindle speed - 200-8,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 5
  • Driven Tool Power - 1kW
  • Speed of tools - 200-6,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 5

Turret

  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 1.5 / 2.2kW
  • Speed of driven tools - 200-6,000RPM

Other Information

  • Space requirement (without bar feeder) - 3,400 x 1,410 x 1,900mm
  • Weight - 3,300kg

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space! Even greater value!

The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Work Area

Vertical Holder

  • 5 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.

Robotic Turret

  • Allows front and back machining including pinch turning.
  • High-torque power driven tools available for all 10 stations (6,000RPM and 1.5 / 2.2kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.

Back working Tool Post

  • U150B can accomodate 5 fixed drill sleeves (25.4mm dia.)
  • Pitch centers of 50mm and 35mm
close button

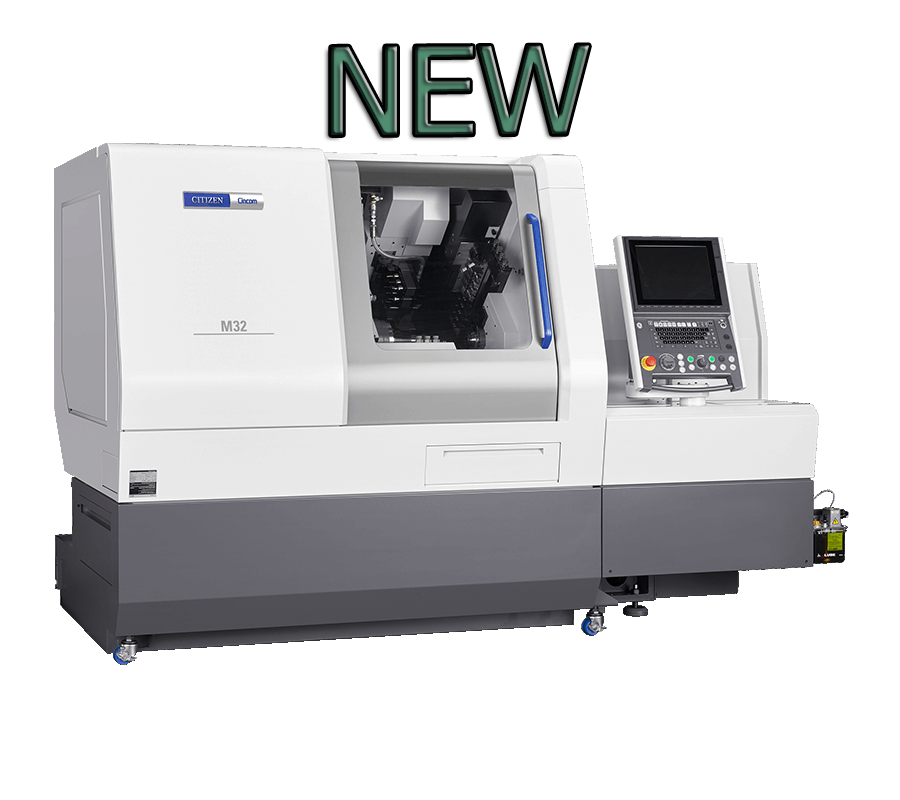

M432VIII

Cincom M432VIII

Machine Options

Standard Accessories

  • Main Spindle Chucking Device
  • Back Spindle Chucking Device
  • Headstock Cooling Device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional Accessories

  • Extensive toolholder options
  • Choice of Barfeeder
  • Coolblaster High Pressure Coolant
  • Mist Control
  • Long Parts Adapter
  • Chip Conveyor

Specifications

Main spindle

  • Max. turning diameter - 32mm
  • Max. turning length - 320mm
  • Spindle through-hole diameter - 36mm
  • Main spindle speed - 200-8,000RPM
  • Main spindle drive power - 3.7 / 7.5kW
  • C-Axis - 0.001°

Sub-spindle

  • Max. workpiece diameter - 32mm
  • Motor rating - 2.2 / 3.7kW
  • Sub-spindle speed - 200-8,000RPM
  • C-Axis - 0.001°

Vertical Tool Post

  • Turning tools in vertical tool holder platen - 5
  • Number of rotary tools - 7
  • Driven Tool Power - 1kW
  • Speed of tools - 200-6,000RPM

Opposed Tool Post

  • Fixed tools for back machining - 3
  • Driven tools for back machining - up to 6
  • Y Axis - Yes

Turret

  • Y-Axis - Yes
  • Driven stations on turret - 10
  • Max. number of tools - 60+
  • Driven tool power - 1.5 / 2.2kW
  • Speed of driven tools - 200-6,000RPM

Other Information

  • Space requirement (without bar feeder) - 3,400 x 1,410 x 1,900mm
  • Weight - 3,300kg

Machine Overview

More tools!... more functions!... more flexibility!...higher productivity!... same floor space!

Even greater value!

The M32 is renowned for its leading capability for 3 tool simultaneous machining in a compact floor space. The all round combination of flexible tooling, large tool capacity, and outstanding ease of use has made the M32 our success story in the new century. The next generation M32 increases the 3 tool simultaneous machining abilities with a new Y3 axis on the back tool post which carries up to 9 tools (up to 6 driven). In addition the machine boasts an improved / upgraded turret with direct indexing, faster rapid feed rate (up to 32m/min) and reduced power consumption.

Work Area

Vertical Holder

  • 7 rotary cross-drilling / milling spindles and 5 turning tools for turning, grooving, screw-cutting, parting-off etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.

Robotic Turret

  • Allows Front and back machining including pinch milling.
  • High-torque power driven tools available for all 10 stations (6,000RPM and 1.5 / 2.2kW).
  • Multiple tool holders and intermediate indexing allow 60+ tools to be fitted.
  • Tools can be indexed directly without turret retraction saving 0.5 secs per index.
  • Y-Axis allows tool change without turret indexing and tool offset adjustment in 3 axes.
  • Double / Triple sleeve tool holder and double cross-spindle take full advantage of Y-axis.

Back working Tool Post

  • Can accommodate holders at 3 positions (2 for rotary tool specifications – 1kW / 6000rpm and 1 for fixed tool specifications)
  • Up to 9 tools can be fitted.
  • Back tool post using Y3 axis in combination with the sub spindle X3 and Z3 axes allows the following operations to be carried out simultaneously with other operations.
  • Allows operations such as drilling (face / cross), tapping (face / cross), screw-cutting, boring, interpolation, PCD and turning to be carried out simultaneously with other operations.
close button

R07VI

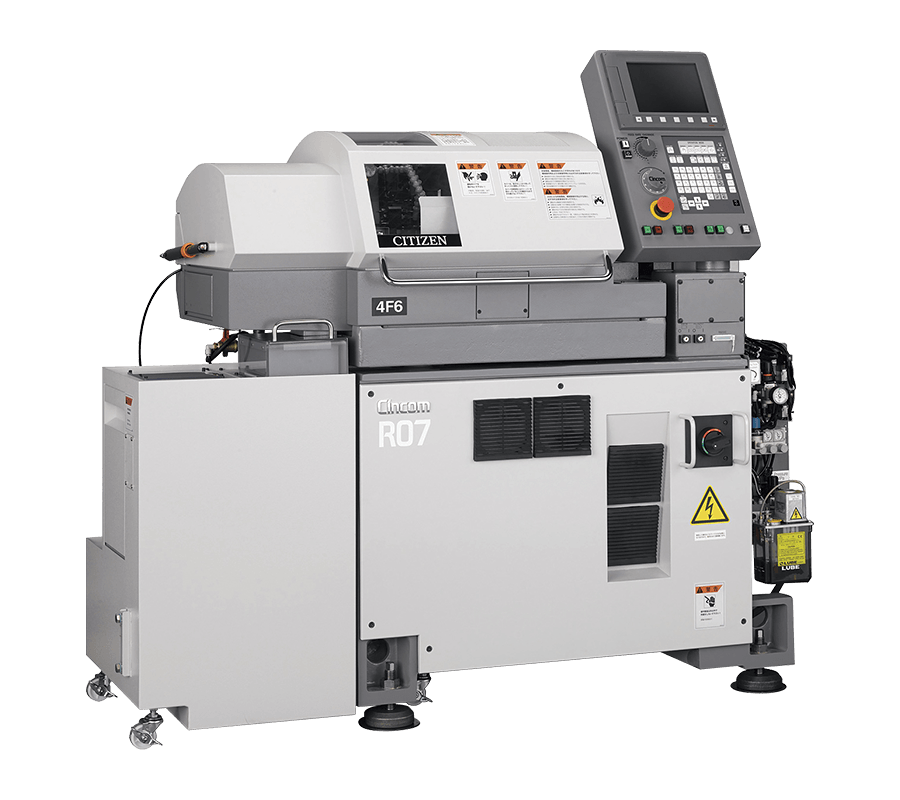

Cincom R07

Machine Options

Standard

  • Main Spindle Chucking Device
  • Back Spindle chucking device
  • Door Switch
  • Lubricating Oil Supply
  • Pneumatic Device for air sealing
  • Part-off Tool Breakage Detector(Electronic type)
  • Work Area Lamp
  • Cutting oil level detection

Optional

  • Extensive toolholder options
  • Choice of Barfeeder
  • Mist Control
  • Chip Conveyor
  • Part-off Tool Breakage Detector(Probe type)
  • Suction-type parts catcher

Specifications

Main spindle

  • Max. turning diameter - 7mm
  • Max. turning length (in one clamp) - 40mm
  • Main spindle speed - 16,000RPM
  • Main Spindle Drive Rating - 0.75/1.1kW
  • No. of turning tools - 5(6)
  • No. of front working tools - 3
  • No. of end working tools - 3
  • Spindle Indexing - 1°
  • Spindle through hole - 12mm

Sub-spindle

  • Max. workpiece diameter - 7mm
  • Max. workpiece length - 40mm
  • Drive rating - 0.5/0.75kW
  • Speed - 200-10,000RPM
  • Sub-spindle indexing - 1°

Driven Tools in Vertical Tool Holder

  • No. Driven Tools (transverse) - 2(3)
  • Drive rating - 0.20kW
  • Speed - 200-8,000RPM

Other Information

  • Rapid feed rate (all Axes) - 30m/min
  • Space Requirement [LxDxH] - 1465x560x1410mm
  • Weight - 800kg
  • Power Requirement (without bar feed) - 4kVA

Machine Overview

The Cincom sliding head lathe R07 defines it's own category for ultra-precise production of small and tiny parts. Equipped with a sub spindle and 2 rotary tools the machine is designed for maximum precision, extremely fast machining, short response times whilst occupying minimal floor space.

Cincom R07 Work Area

Work Area

Vertical Holder 1

  • Up to 2 rotary tools and up to 3 turning tools available for turning, grooving, screwcutting, parting-off, milling etc.
  • Standard Y-axis facilitates tool center height adjustment and enables complex operations to be carried out with ease.
  • Many tooling options available.

Vertical Holder 2

  • 3 stationary spindles for front machining
  • 3 stationary spindles for back machining
  • 2 turning tools (3 optional)
  • Allows operations such as drilling, tapping, screw-cutting, boring and turning to be carried out simultaneously.
close button

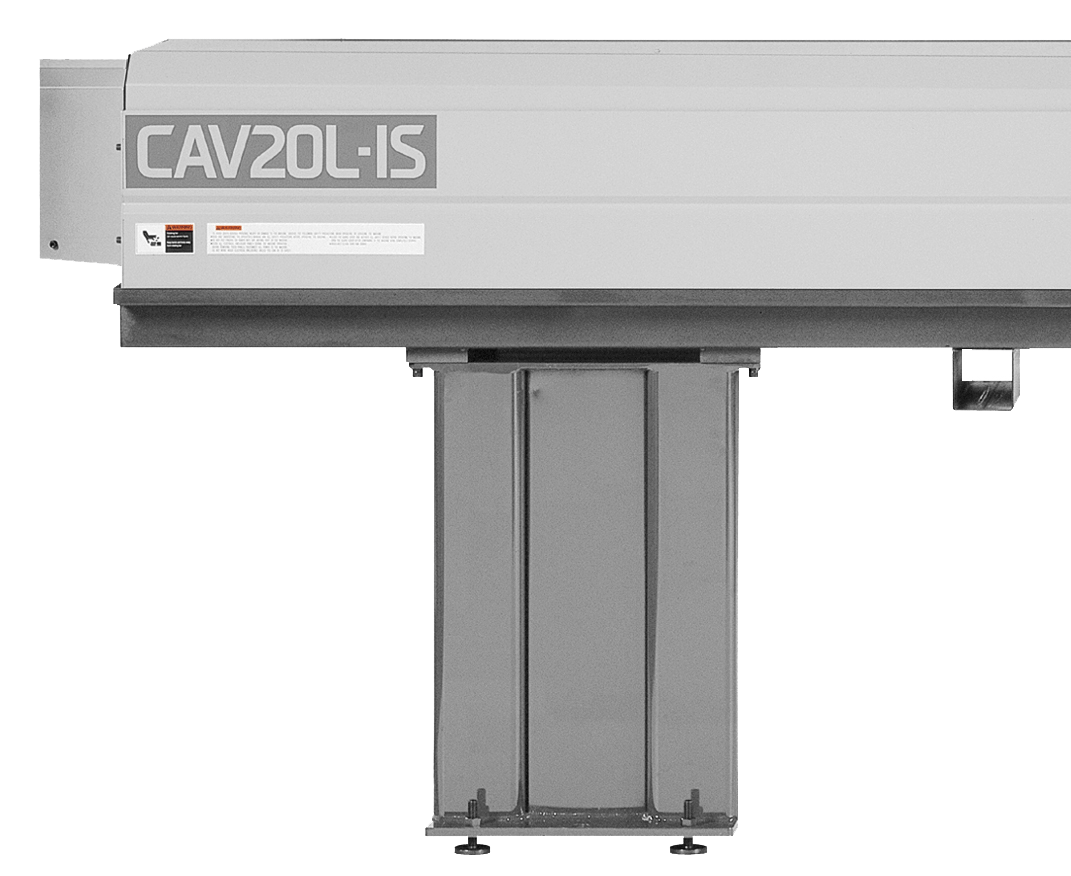

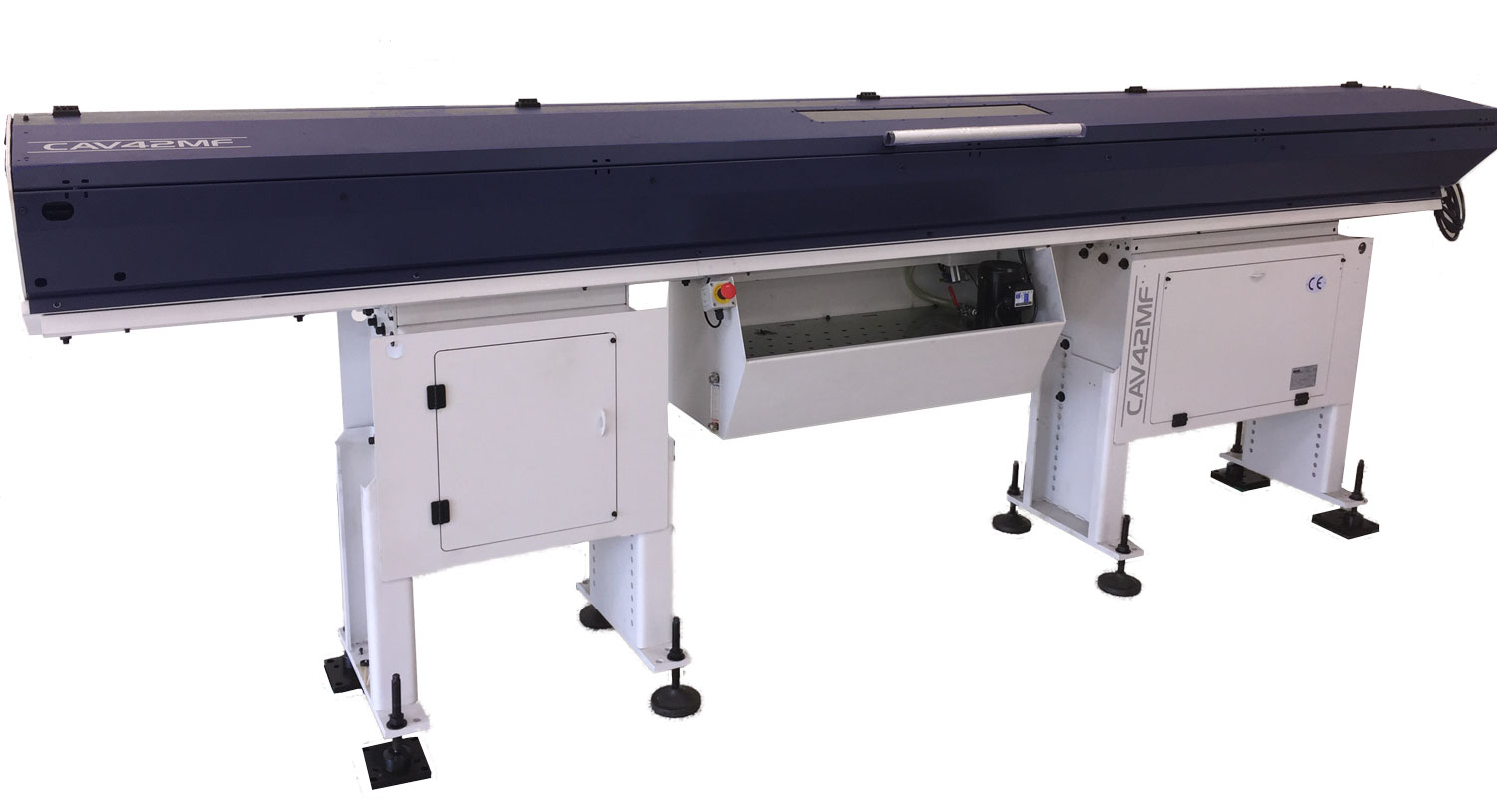

CAV Bar Loaders

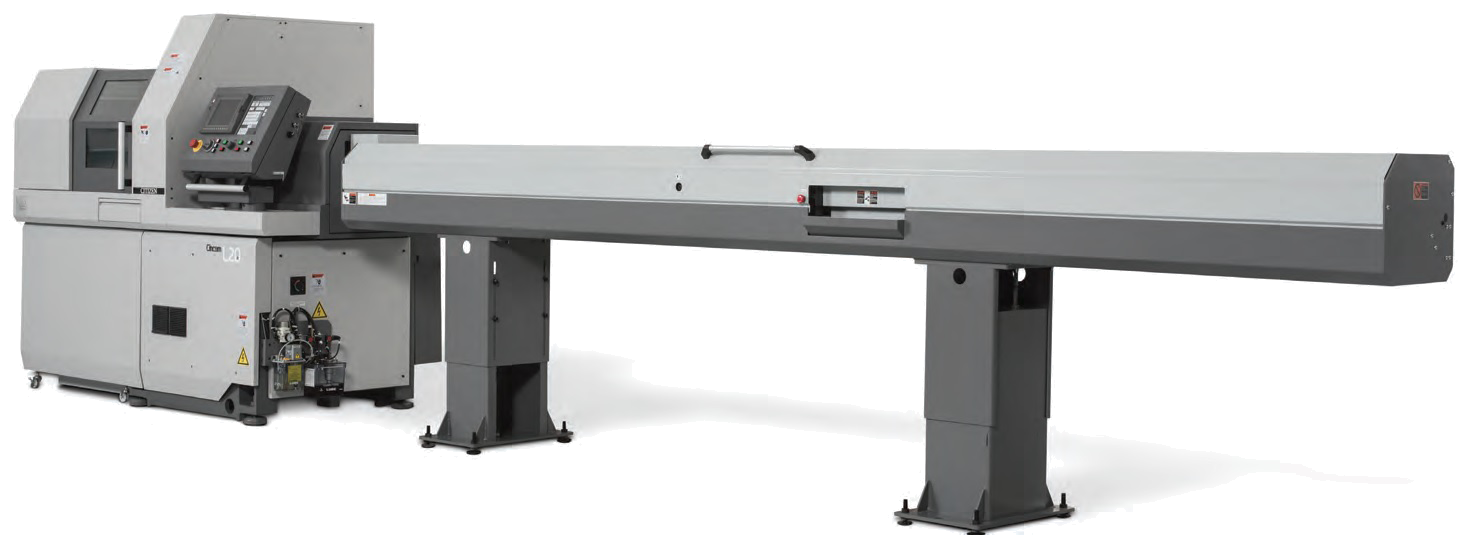

The Cincom product line has many positive selling points, but perhaps the most compelling point is that Spinetti Machinery offers a "one stop shop for service." Whether you are having Machine problems, Barloader problems, Control Problems, etc. you never make more than one phone call to Spinetti Machinery. This means we don't play the blame game, and after the honeymoon period tell you to call another company for support.
Cincom Cav Barloader

Specifications

Bar profiles round, hexagonal, square

Maximum bar length 13'

Bar stabilization Oil supply to the guide rail. Intermediate three-roller support and rear-end four roller support. Attached with an oil splash prevention guide rail shutter.

Bar rack width 10.25"

Control Operation and synchronous control by NC lathe

Power source AC200/220V, 50/60Hz

Weight (without oil) 1,254 - 1,430 lbs

Bar diameter range

2 ~ 12mm (CAV12-LE)

2 ~ 16mm (CAV16)

2 ~ 20mm (CAV20)

3 ~ 36mm (CAV32)

Oil ISO VG34/ 24 (CAV12/16/20 ) or VG68 (CAV32)

CAV Bar Stabilizing System

Cincom’s unique bar and spindle stabilizing mechanism aligns precisely the bar’s center of rotation with the center of the spindle. Forces are evenly distributed, protecting the spindle from excessive wear.

Oil/Roller Support System

As the bar rotates, it becomes hydrostatically supported in a bath of oil, and perfectly centered in the guide channels. Even with full-length, 13' bars, the lathe can operate noise-free and vibration-free at speeds to 12,000 rpm.

Z-Axis Movement

Movements of the bar feeder are automatically programmed as an additional Z-axis on the turning center’s CNC. All bar feeder movements mirror exactly the movements in the lathe. The result is superior precision and maximized productivity.

Space-Saving Pusher Design

An auxiliary device pre-positions the bar. Forward and back motion is controlled by a servo that's connected directly to the lathe’s CNC. The bar positions to tenths accuracy with no following error. Insertion and braking response times are instantaneous.

close button

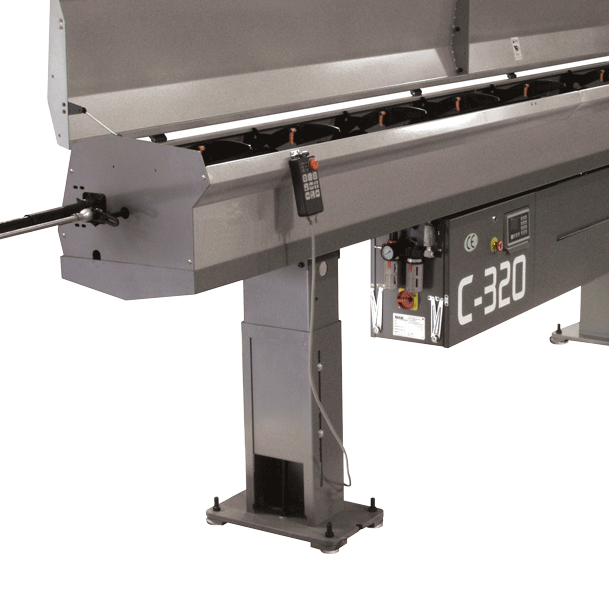

Cincom C320/C332 Bar Loaders

The Cincom product line has many positive selling points, but perhaps the most compelling point is that Spinetti Machinery offers a "one stop shop for service." Whether you are having Machine problems, Barloader problems, Control Problems, etc. you never make more than one phone call to Spinetti Machinery. This means we don't play the blame game, and after the honeymoon period tell you to call another company for support.
Cincom C320/C332 Barloader

Barloader Features

Double Pusher

The two pusher system drastically reduces the overall length of the unit by as much as 4 feet. A short pusher pre-feeds the bar then retracts, then a second full-length pusher lowers into position to continue the feeding process.

Dual Anti-Vibration Devices

Dual anti-vibration devices stabilize the bar stock at two critical points between the guide channel and lathe spindle maximizing RPM potential. Its adjustable roller design provides superior support and easy setup of all bar diameters without the cost of multiple bearing blocks.

Bushing Blocks

Optional bushing-blocks replace rollers on out-board steady rest when running shaped stock.

Gripper - Remnant Retract

The gripper device holds and inserts the new bar into the bar collet and is also used to extract the remnant. Bar ends that are free of burrs require no additional chamfering. The gripper requires no adjustment for bar size changes as it “self-centers”.

Rorating Tip & Collet

The bar pusher is equipped with a standard rorating tip that ensures smooth running at high RPM. The bar stock collet is a common thread-on or pin-on type.

Sync Device

As a standard feature on the C320/C332, the Synchronization device for Swiss style lathes employs an electro-magnetic coupling, mechanically linking the lathes headstock’s z-axis travel to the bar feeder’s pusher to ensure synchronous movement and no loss of connection between the bar stock and collet-pusher. The bar remnant is withdrawn to the back end of the magazine. A gripper extracts it from the bar stock collet and deposits it in a hide-away remnant basket.

Belt Drive

The C320/C332’s double pusher system is propelled by a toothed belt for accuracy as well as smooth quiet running.

Control

A Mitsubishi controller and servo drive provide the Minuteman’s motion control and functionality.

Remote Pendant

The C320/C332 features the convenience of an easy-to-use remote control pendant. Functions include:

  • Manual and automatic operation
  • Manual load/unload of bar stock for set-up and/or change over
  • Movement of bar pusher
  • Emergency stop

Quick Change Guide Channels

The top guide channel is profiled for all bar stock sizes. The “U” shaped bottom guide channel sections slide easily out of their base. Simply insert the new channel size, tighten the screw and the C320/C332 is ready for the new bar stock.

Operator Control Panel

The control is easy to program, yet flexible enough for all applications. Parameters are set through simple F functions. Alarms are well defined and displayed on the operator control panel. Panel swings out for ease of use.

Robust Construction

Heavy gauge structural steel ensures rigidity and long term durability.

Large Storage Capacity

The bar stock magazine is an incline rack with a loading capacity of 10 linear inches. Bars can be loaded from the front or the rear sides of the bar feeder.

Stock Alignment Guides

The bar stock alignment guides are quickly and easily adjusted for different bar diameters, effectively reducing set up time.

The channel is flooded with oil to create a hydrodynamic effect resulting in higher RPM with reduced noise and vibration.

Specifications

Power consumption - 1.5 kW

Feed force - adjustable, max. 450 N

Forward feed rate - adjustable max. 600 mm/sec

Return feed rate - 1000 mm/sec

Loading time - 30 sec (for 12 ft. bars)

Oil capacity - 46 liters (12 gallons)

Oil viscosity - ISO 100 cST

Operating voltage - 230 V/60 Hz

Compressed air supply - 6 bar (90 psi)

Compressed air consumption - approx. 8 liters per loading action

Weight without oil - 1320 lbs

Remnant length - 420mm max (16.5 inches)

Maximum Bar Length - 3785 mm (12’5”)

Bar Diameter Range - 3-26 mm (.125“-1.023“)

Reversible Configuration - Machine is reversible to load material from front or rear

close button

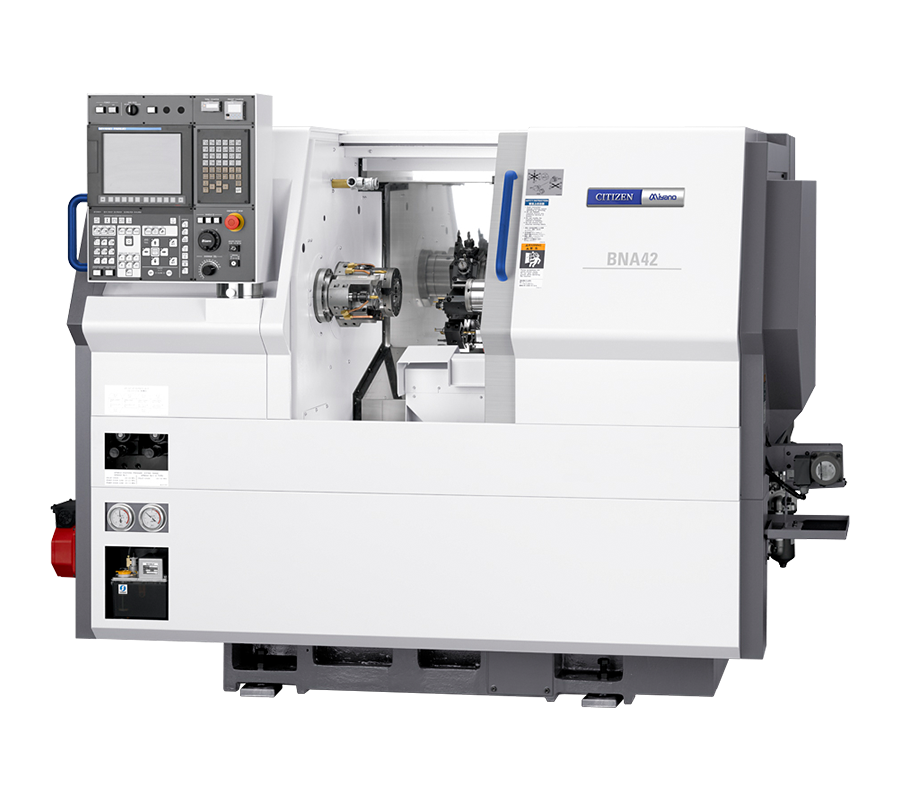

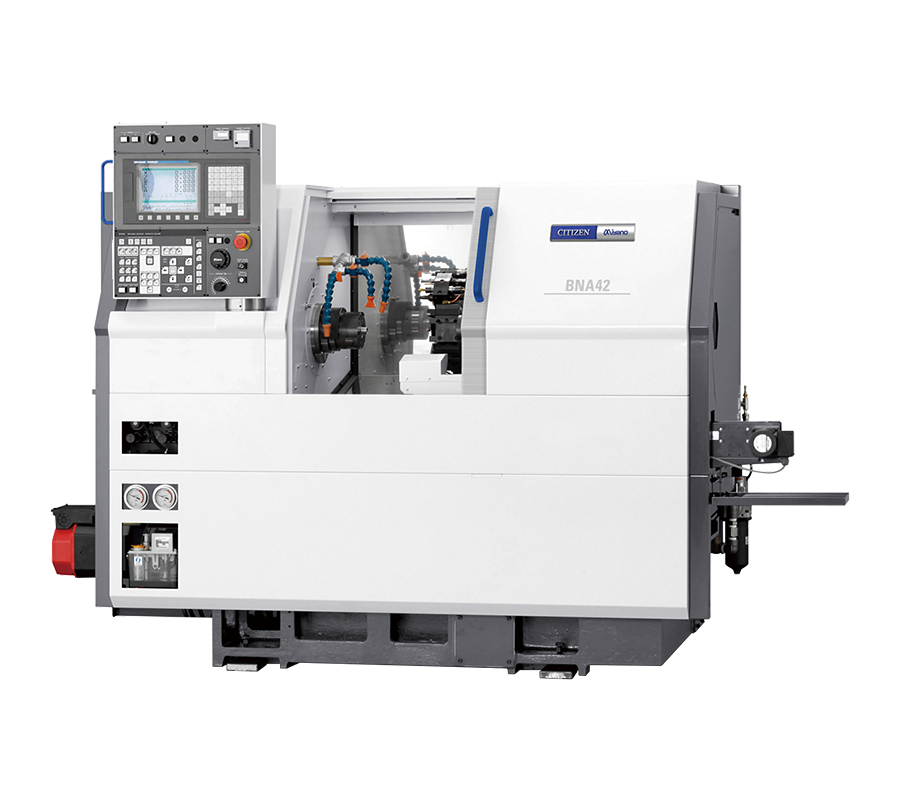

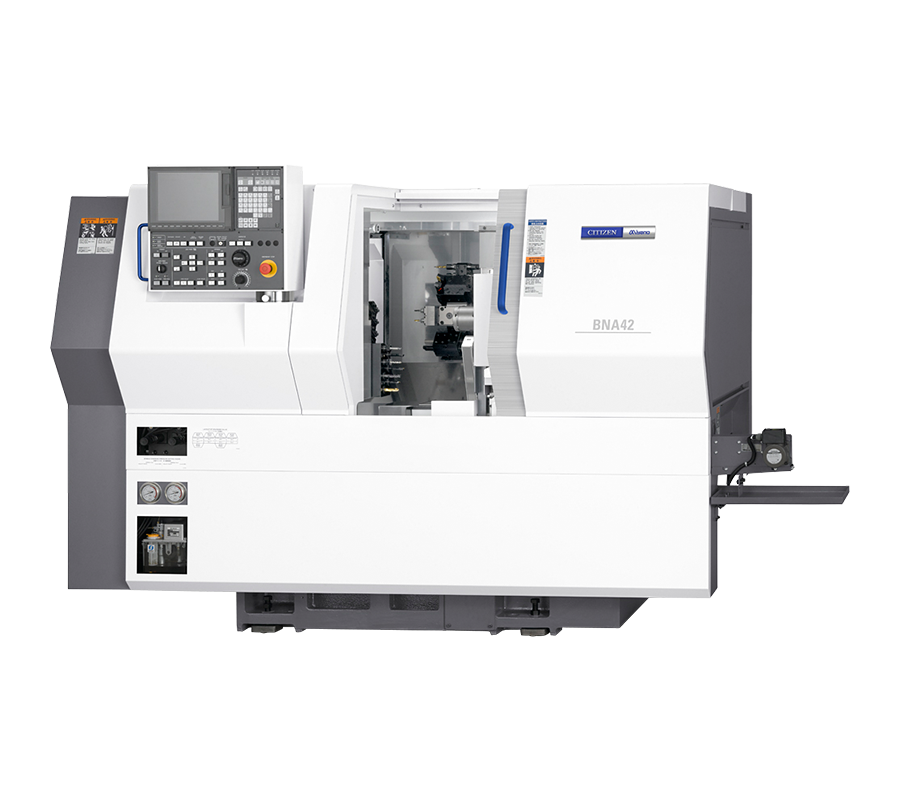

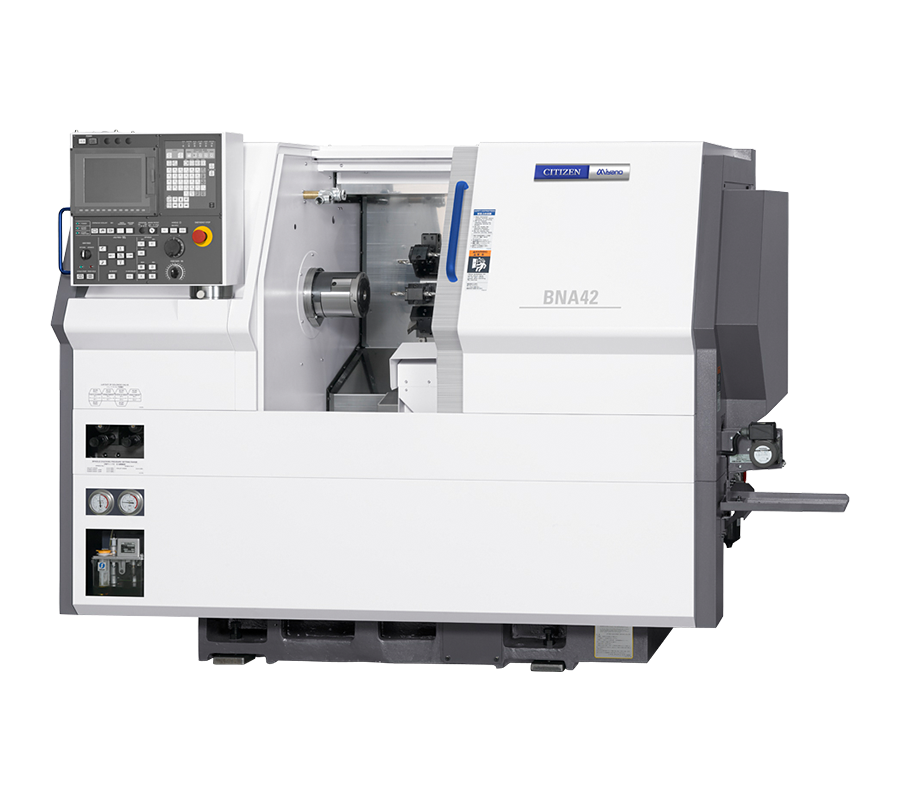

BNA-42S

Miyano BNA-42S

Machine Options

Standard

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Chip conveyor
  • Parts Conveyor
  • Medium Pressure Coolant system

Optional

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • 1,000 PSI High Pressure Coolant

Specifications

Main Spindle

  • Bar Capacity - 42mm
  • Standard Machining length - 100mm
  • Motor - 7.5/5.5kW
  • Spindle speed range - 50~6,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - 42mm
  • Motor - 5.5/3.7kW
  • Spindle speed range - 50~5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 1
  • Number of Stations - 8
  • Number of Driven tools - 8
  • Drive motor of Driven tool. - 8 ( 2.8/1.0kW )Nm
  • Driven tool speed range - Max. 5,000RPM

Dimensions

  • Foot print (length width) - 2,200x1,280mm

Machine Overview

Entry level value with back machining flexibility.

Featuring 2 spindles and 1 turret, the entry-level BNA-42S offers excellent value for simpler requirements whilst offering back machining abilities.

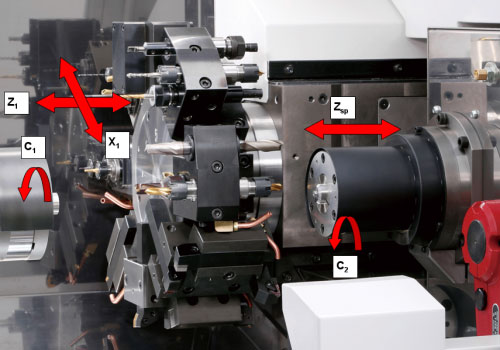

Miyano BNA-42S Work Area

Work Area

Main Spindle

  • 42mm Dia.
  • 5.5 / 7.5kW
  • 5,000 RPM
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 3.7 / 5.5kW
  • 5,000 RPM
  • C-Axis

Turret

  • 8 station turret with the half-position indexing mechanism utilizes all 16 turret stations with no turret tool holder interference.
  • The 8 driven tool positions are individually powered (2.8 / 1.0kW, 5000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • A flexible package of fixed and driven tooling is available.
close button

BNA-42MSY

Miyano BNA-42MSY

Machine Options

Standard

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Chip conveyor
  • Parts Conveyor
  • Medium Pressure Coolant system

Optional

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • 1,000 PSI High Pressure Coolant

Specifications

Main Spindle

  • Bar Capacity - 42mm
  • Standard Machining length - 100mm
  • Motor - 7.5/5.5kW
  • Spindle speed range - 50~6,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - 42mm
  • Motor - 5.5/3.7kW
  • Spindle speed range - 50~5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 1
  • Number of Stations - 8
  • Number of Driven tools - 8
  • Drive motor of Driven tool. - 8 ( 2.8/1.0kW )Nm
  • Driven tool speed range - Max. 5,000RPM

Dimensions

  • Foot print (length width) - 2,200x1,280mm

Machine Overview

Featuring 2 spindles, Y-axis equipped turret and an X2 axis on the back spindle, the BNA-42MSY offers excellent value with independent machining on the front and back of the workpiece simultaneously. This, in effect provides the benefits of a twin-turret model with the significant cost savings of a single turret model.

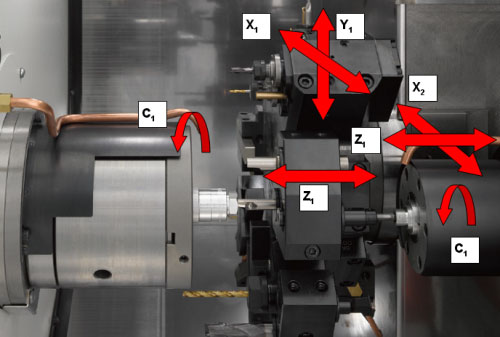

Miyano BNA-42MSY Work Area

Work Area

Main Spindle

  • 42mm Dia.
  • 5.5 / 7.5kW
  • 5,000 RPM
  • C-Axis

Sub Spindle

  • 34mm Dia.
  • 3.7 / 5.5kW
  • 5,000 RPM
  • C-Axis
  • X2 Axis

Turret

  • 8 station turret with the half-position indexing mechanism utilizes all 16 turret stations with no turret tool holder interference.
  • The 8 driven tool positions are individually powered (2.8 / 1.0kW, 5000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • Featuring Y axis to enable maximum machining flexibility.
  • A flexible package of fixed and driven tooling is available.
close button

BNA-42GTY

Miyano BNA-42GTY

Machine Options

Standard

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Chip conveyor
  • Parts Conveyor
  • Medium Pressure Coolant system

Optional

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • 1,000 PSI High Pressure Coolant

Specifications

Main Spindle

  • Bar Capacity - 42mm
  • Standard Machining length - 110mm
  • Motor - 11 / 7.5kW
  • Spindle speed range - 50~6,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - 42mm
  • Motor - 5.5/3.7kW
  • Spindle speed range - 50~5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 1
  • Number of Stations - 8 (16)
  • Number of Driven tools - 8
  • Drive motor of Driven tool. - 8 ( 2.8/1.0kW )Nm
  • Driven tool speed range - Max. 6,000RPM

Gang Tool Slide

  • Turning Tools - 3
  • Number of Cross Rotary Tools - 3
  • Fixed rear facing tools - 7
  • Drive motor of Driven tool. - 1.5kW
  • Driven tool speed range - Max. 6,000RPM

Dimensions

  • Foot print (length width) - 2,350x1,475mm

Machine Overview

Featuring 2 spindles, Y-axis equipped turret and flexible gang toolslide, the BNA-42GTY offers excellent value with independent machining on the front and back of the workpiece simultaneously.

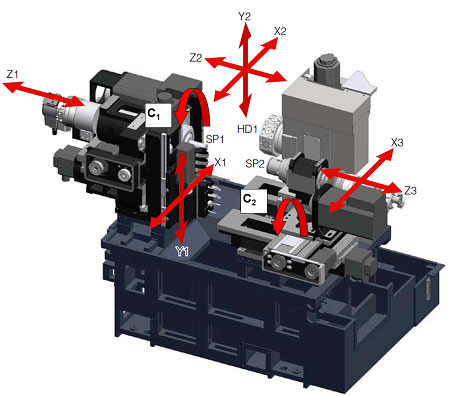

Miyano BNA-42GTY Work Area

Work Area

Main Spindle

  • 42mm Dia.
  • 7.5 / 11kW
  • 6,000 RPM
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 3.7 / 5.5kW
  • 5,000 RPM
  • C-Axis

Turret

  • 8 station turret with the half-position indexing mechanism utilizes all 16 turret stations with no turret tool holder interference.
  • The 8 driven tool positions are individually powered (2.8 / 1.0kW, 6000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • Featuring Y axis to enable maximum machining flexibility.
  • A flexible package of fixed and driven tooling is available.
close button

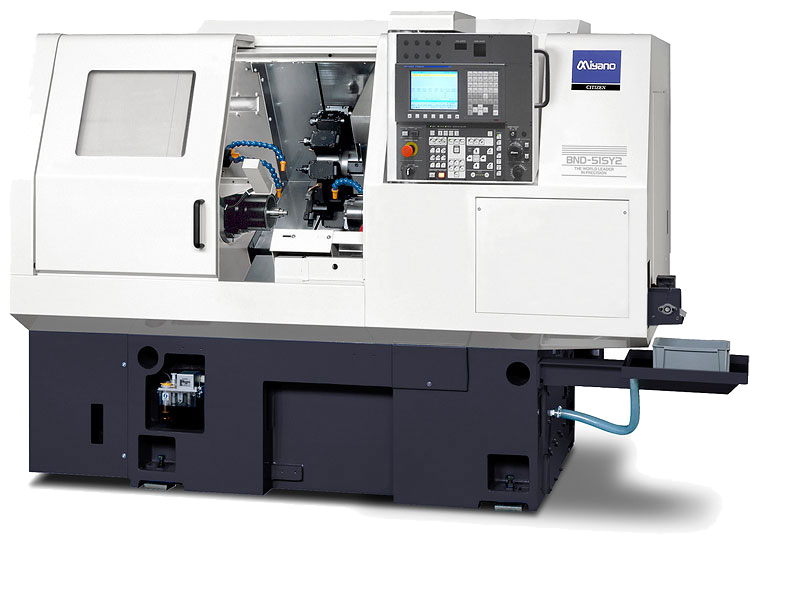

BND-51SY2

Miyano BND-51SY2

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional Accessories

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • Long shaft working system

Specifications

Main Spindle

  • Bar Capacity - 51mm
  • Motor Rating - 15 / 11kW
  • Sp. speed Range - 50 - 5,000RPM

Sub spindle

  • Collet chuck max.capacity - 42mm
  • Motor Rating - 5.5 / 3.7kW
  • Sp. Speed Range - 50 - 5000RPM

Turret

  • Number of turret - 1
  • Type of Turret - 12 station

Driven Tools

  • Number of driven tools - 12
  • Driven tool Speed Range - 40 - 4,000RPM
  • Driven tool motor - 2.5kW

Others

  • Axis - X,Z,Y,B,C1,C2
  • Required floor space (l x w) - 2,605 x 1,740mm

Machine Overview

Featuring 2 spindles and 1 turret (with Y axis function) the BND-51SY2 enables rapid processing of complex workpieces. All main turret stations are driven (max 2.5kW, 4000rpm). Complex machining is possible using the Y-axis slide.

Miyano BND-51SY2 Work Area

Work Area

Main Spindle

  • 51mm Dia.
  • 15 / 11kW
  • 5,000 RPM
  • A2-6
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 5.5 / 3.7kW
  • 5,000 RPM
  • C-Axis

Turret

  • The 12 driven tool positions are individually powered (2.5kW, 4000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard allows more complex parts with driven tools.
close button

BNA-42DHY

Miyano BNA-42DHY

Machine Options

Standard

  • Comprehensive static toolholder package
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Chip conveyor
  • Parts Conveyor
  • Medium Pressure Coolant system

Optional

  • Automatic bar feeder
  • Coolant mist extraction system
  • In cycle probing
  • Work handling automation
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow

Specifications

General

  • Maximum Machining Length - 100mm
  • Number of Axes - 7
  • Collet Chuck - Standard (Main + Sub)

Main Spindle

  • Bar Capacity - 42mm
  • Maximum Machining Length - 100mm
  • Power Chuck (option) - 5
  • Main spindle speed - 60 -6,000RPM
  • Main spindle drive power - 5.5/7.5kW

Sub Spindle

  • Bar Capacity - 42mm
  • Main spindle speed [rpm] - 50 -5,000RPM
  • Main spindle drive power - 3.7/5.5kW

Turret 1 (Main)

  • Number of stations - 8 (all driven)
  • Tool positions - 16
  • Driven station power - 2.8/1.0kW
  • Driven station speed - 50-5000RPM
  • Shank height of Square Turning Tool - 20mm
  • Drill Shank Diameter - 25mm

Turret 2 (Sub)

  • Number of stations - 6
  • Shank height of Square Turning Tool - 20mm
  • Drill Shank Diameter - 25mm

Other Information

  • Space requirement (without bar feeder) - 2,220x1,460x1,700mm
  • Weight - 2,900kg

Machine Overview

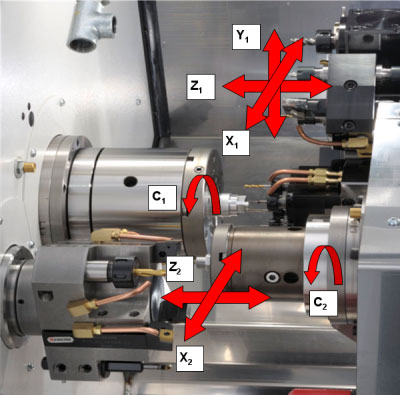

Miyano BNA-42DHY Work Area

Work Area

Main Turret

  • 8 station turret with the half-position indexing mechanism utilizes all 16 turret stations with no turret tool holder interference.
  • The 8 driven tool positions are individually powered (2.7 / 1.0kW, 5000rpm) to minimize torque loss and a lubricating system protects the gears inside the turret.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard allows more complex parts with driven tools.

Sub Turret

  • The BNA-42DHY is equipped with a 6 station sub turret beside the main spindle, for back working .
  • Can accommodate 3 turning tools and 3 drilling tools.
  • Tool holders are not required except for Round Hole Bushes.
  • Allows work to be carried out simultaneously on sub spindle whilst main turret works on main spindle.
close button

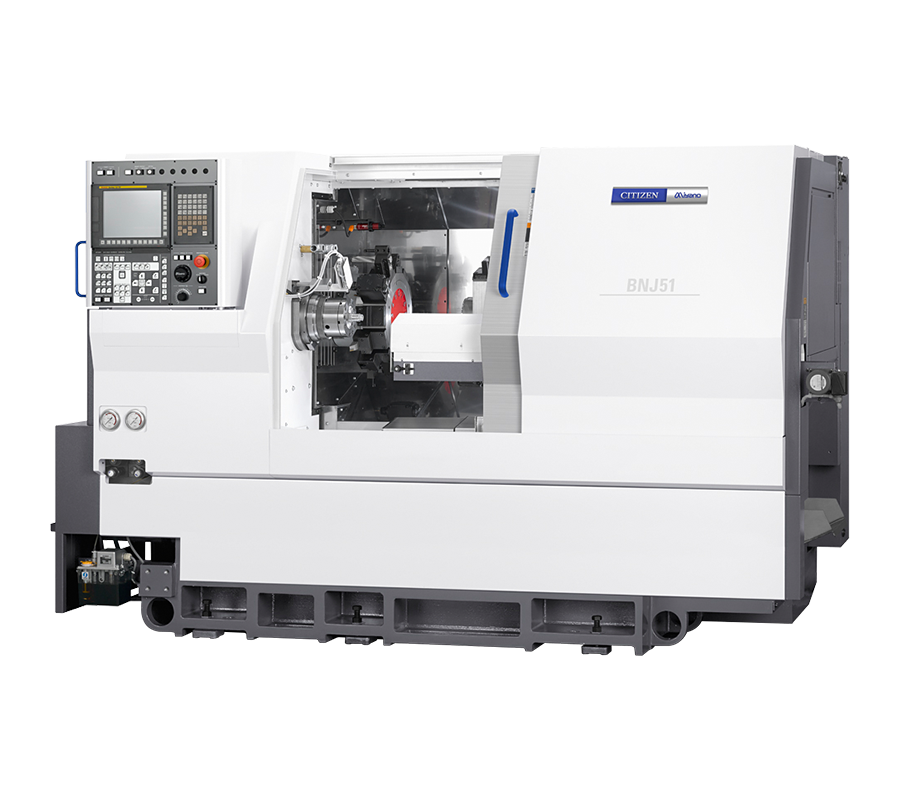

BNJ-51SY6

Miyano BNJ-51SY6

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Electronic Handwheel Handle retrace
  • Thermo Revision (Stealth System)
  • Tool Monitoring System
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional

  • Automatic bar feeder
  • Coolant mist extraction system
  • In cycle probing
  • Work handling automation
  • Long shaft working system

Specifications

Main Spindle

  • Bar Capacity - 51mm
  • Standard Machining length - 100mm
  • Spindle Nose - A2-6
  • Motor - 11 /7.5 kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Sub Spindle

  • Maximum workpiece diameter - 42mm
  • Spindle Nose - Flat
  • Motor - 5.5 /3.7 kW
  • Spindle speed range - 67 - 5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 2
  • Number of Stations - 12 + 6
  • Number of Driven tools - 12
  • Drive motor of Driven tool. - 20 Nm [ 2.5 kW ]
  • Driven tool speed range - 6,000RPM

Machine Overview

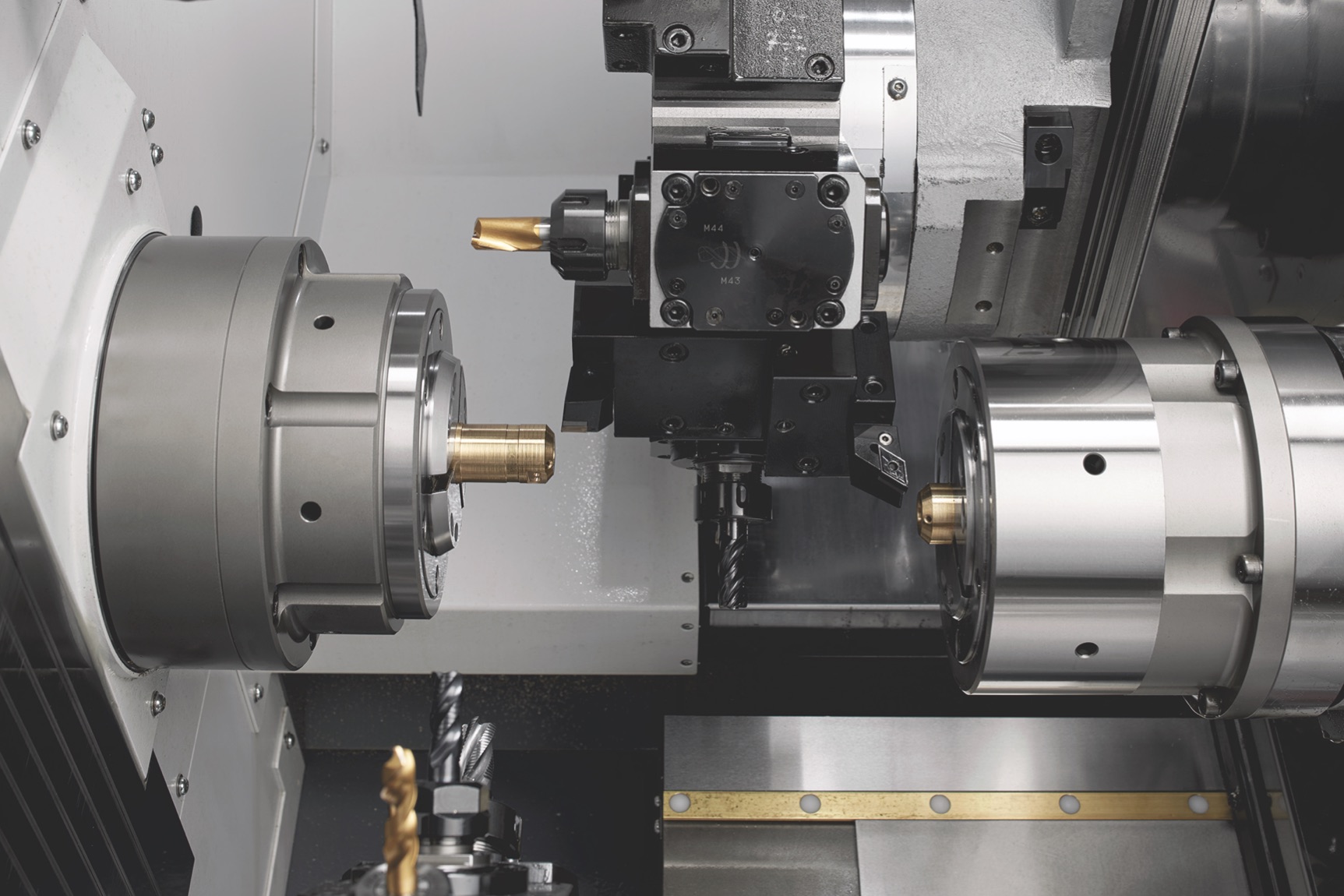

Miyano BNJ-51SY6 Work Area

Work Area

Main Spindle

  • 51mm Dia.
  • 11 / 7.5kW
  • 5,000 RPM
  • A2-6
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 5.5 / 3.7kW
  • 5,000 RPM
  • C-Axis

Main Turret

  • 12 station turret.
  • The 12 driven tool positions are individually powered (2.5kW, 6000rpm) to minimize torque loss.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard allows more complex parts with driven tools.

Sub Turret

  • 6 station turret for back working.
  • Allows work to be carried out simultaneously on sub spindle whilst main turret works in main spindle.
  • Solid construction with no axis movement.
close button

BNE-51SY6

Miyano BNE-51SY6

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Electronic Handwheel Handle retrace
  • Tool Monitoring System
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional Accessories

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • Hainbuch workholding options
  • Long shaft working system

Specifications

Main Spindle ( AC motor )

  • Bar Capacity - 51mm
  • Standard Machining length - 90mm
  • Spindle Nose - A2- 6
  • Motor - 15 / 11kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Sub Spindle ( AC motor )

  • Maximum workpiece diameter - 42mm
  • Spindle Nose - Flat
  • Motor - 5.5 / 3.7kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 2
  • Number of Stations - 24 ( 12 x 2 HEAD )
  • Number of Driven tools - 24
  • Drive motor of Driven tool. - 20 Nm [ 2.2kW ]
  • Driven tool speed range - 6,000RPM
  • Shank height of Square turning tool - 20mm X 20mm

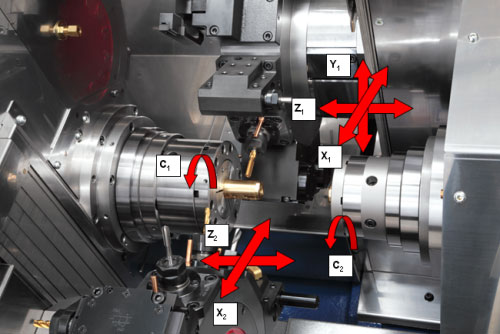

Miyano BNE-51SY6 Work Area

Work Area

Main Spindle

  • 51mm Dia.
  • 15 / 11kW
  • 5,000 RPM
  • A2-6
  • C-Axis

Sub Spindle

  • 42mm Dia.
  • 5.5 / 3.7kW
  • 5,000 RPM
  • A2-6
  • C-Axis

Twin Turrets

  • 2 x 12 station turrets.
  • The 12 driven tool positions are individually powered (2.2kW, 6000rpm) to minimize torque loss.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard on upper turret allows more complex parts with driven tools.
close button

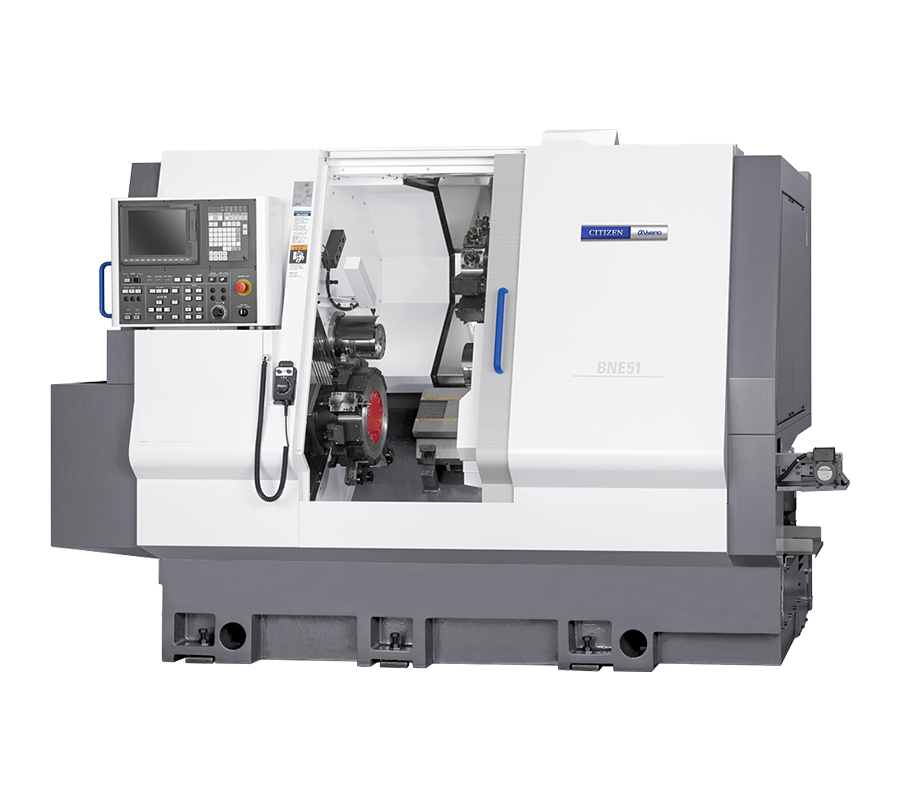

BNE-51MSY

Miyano BNE-51MSY

Machine Options

Standard Accessories

  • Comprehensive static toolholder package
  • Electronic Handwheel Handle retrace
  • Tool Monitoring System
  • Auto Power Shut-off
  • Cut-off Confirmation
  • Parts Catcher
  • Parts Conveyor
  • Chip conveyor
  • Medium Pressure Coolant system
  • Spindle Medium Pressure Coolant
  • Spindle Air Blow
  • Spindle brake for milling

Optional Accessories

  • Automatic bar feeder
  • Mist Control Unit
  • In cycle probing
  • Work handling automation
  • Hainbuch workholding options
  • Long shaft working system

Specifications

Main Spindle ( AC motor )

  • Bar Capacity - 51mm
  • Standard Machining length - 90mm
  • Spindle Nose - Flat
  • Motor - 15 / 11kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Sub Spindle ( AC motor )

  • Maximum workpiece diameter - 51mm
  • Spindle Nose - Flat
  • Motor - 7.5 / 5.5kW
  • Spindle speed range - 50 - 5,000RPM
  • C-axis - 0.001°

Turret Head

  • Number of Turrets - 2
  • Number of Stations - 24 ( 12 x 2 HEAD )
  • Number of Driven tools - 24
  • Drive motor of Driven tool - 25 Nm [ 2.2kW ]
  • Driven tool speed range - 6,000RPM
  • Shank height of Square turning tool - 20mm X 20mm

Work Area

Main Spindle

  • 51mm Dia.
  • 15 / 11kW
  • 5,000 RPM
  • Flat
  • C-Axis

Sub Spindle

  • 51mm Dia.
  • 7.5 / 5.5kW
  • 5,000 RPM
  • Flat
  • C-Axis

Twin Turrets

  • 2 x 12 station turrets.
  • The 12 driven tool positions are individually powered (2.2kW, 6000rpm) to minimize torque loss.
  • A flexible package of fixed and driven tooling is available.
  • Y axis as standard on upper turret allows more complex parts with driven tools.
  • X2 axis on SP2
close button

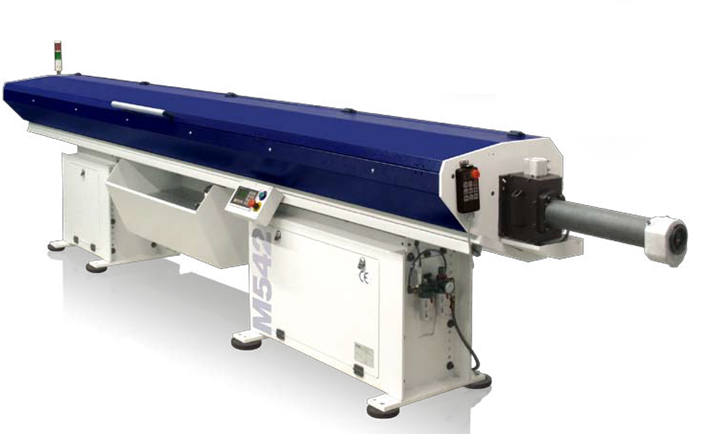

M542 Bar Loader

The Miyano M542 is an Automatic Magazine style Bar Feeder for feeding round, square and hexagonal bar stock into Miyano lathes.
M542 Barloader

Specifications

Maximum bar length 12' 6"

Bar Diameter Range 5-42 mm

Loading Time 30 sec (for 12' bars)

Bar supply method Disk feeding

Control Operation and synchronous control by NC lathe

Operating Voltage 220~230 V/60hz

Weight (without oil) 2100 lbs.

Oil ISO VG68/351(M16) ISO VG68/451(L20/M20)

Automatic Loading Magazine

12 linear inched of rack capacity

Guide Channels

Universal polyurethane guide channels handle a wide range of stock sizes, yet change over quickly. The channel is flooded with oil to create a hydrodynamic effect resulting in higher RPM with reduced noise and vibration.

Robust Construction

Heavy gauge sturctural steel ensure rigidity and long term durability

Touch Screen Control

The control is easy to program, yet flexible enough for all applications. Memory storage for jobs simplifies changeovers. Diagnostics and troubleshooting are all run from this advanced control screen.

Control

A reliable, universal Mitsubishi motion control - dependable and user friendly. Allows easy bar feeder parameters.

close button

MSL65 Bar Loader

The MSL65 Servo short loader is a compact bar loading system for CNC lathes MSL65 features include a large magazine capacity, easy programming, audible alarm axial shift, feed force, linear feed Servo drive and optional slug feed.
MSL65 Barloader

Specifications

Bar diameter capacity: 5 mm to 67 mm (.196” to 2.63”)

Bar length capacity: up to 60”(spindle length determines maximum bar length)

Magazine capacity is 25 linear inches

Mitsubishi PLC controller—powerful & user friendly

Easy centerline adjustment using sliding scale

Standard x-axis axial shift device

Soft load material presentation

Remote control pendant

Standard Features

12 linear inched of rack capacity

Fixed piece feed-out and sub-spindle mode

Lathe spindle speed can be maximized

Material length can be uniform or random

Material can be round, hexagonal or shaped

(3) Pushers included: 6 mm, 12 mm, 19 mm

close button

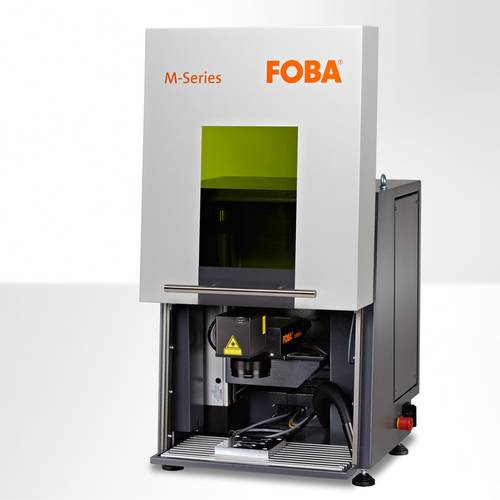

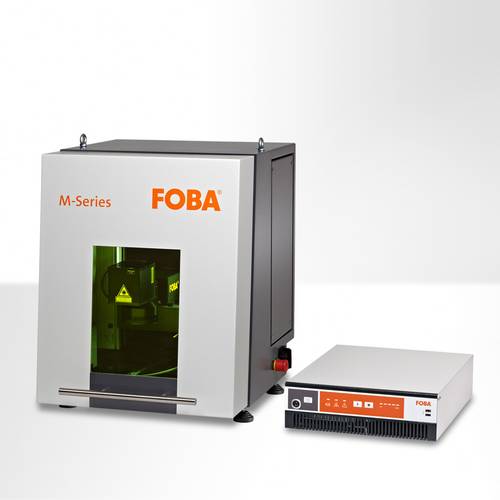

M1000 Series

Foba 1000

Overview

    The compact manual fiber laser marking machine FOBA M1000 has been designed for the high-quality laser marking of small parts, medium sized components and work pieces and batches. Among others, the M1000 is ideally suited for laser marking autoparts, medical products, metal and plastic tools and general industrial products and components. The small and mobile universal marking workstation is also perfect for laser based contract manufacturing. The M1000 processes small metallic and plastic components but also batches both economically and in high marking quality.

    It is ideally suited for manufacturers with low volume requirements or where space constraints demand an efficient solution. The workstation can also be cart mounted for mobility throughout a user's facility.

    The desktop workstation is operated in laser safety class 1 and comes with a programmable Z-axis, a small worktable and a smoothly opening lift door – available either as manual or as optional electric lift door. When open, the interior space is accessible from three sides. In order to cover the broadest possible spectrum of applications, various fiber laser markers are available for integration.

close button

M2000 Series

Foba 3000

Overview

    The M-Series represents FOBA's next-generation of laser marking machines. The M-Series laser workstations process small, large and geometrically complex work pieces as well as batches and small series precisely and efficiently. The M-Series is available in two housing sizes (M2000 and M3000), and three models for each size (B: with work table, R: with rotary table, P: with X/Y/Z axis).

    The M2000-Blaser marking machine is equipped with a programmable Z-axis, a work table and an electric lift door. The general-purpose laser marking machine marks various single parts including large ones) in many sectors, including the automobile industry, the construction of metals, tools and machines, the medical field and plastic-processing industries.

    The M2000-P laser workstation is equipped with three programmable axes (X, Y, Z; can be expanded to 5 axes) and an electric lift door. The laser workstation is ideally suited for the processing of batches and the small parts in pallets; the M2000-P has also been designed to mark larger components for which the marking positions have to be travelled at or where marks have to be applied at several positions.

    The M2000-R automatic rotary table machine is equipped with a programmable Z-axis and a 2-station rotary table. It is ideally suited for the production of serial parts found in day/night design elements, metal components, tools or medical products.

close button

M3000 Series

Foba 3000

Overview

    The M-Series represents FOBA's next-generation of laser marking machines. The M-Series laser workstations process small, large and geometrically complex work pieces as well as batches and small series precisely and efficiently. The M-Series is available in two housing sizes M2000 and M3000), and three models for each size (B: with work table, R: with rotary table, P: with X/Y/Z axis).

    The M3000-B laser marking machine is equipped with a programmable Z-axis, a work table and an electric lift door. The all-purpose laser workstation is particularly useful when it comes to the marking of large single parts in many sectors, including the automobile industry, the construction of metals, tools and machines, the medical field and plastic-processing industries.

    The M3000-P laser workstation is equipped with three progrannable axes (X, Y, Z; can be expanded to 5 axes) and an electric lift door. The laser workstation is ideally suited for the processing of batches and small parts in pallets and trays; the M3000-P has also been designed to mark larger components for which the marking positions have to be traveled at, or where marks have to be applied at several positions.

    The M3000-R automatic rotary table workstation is equipped with a motor-adjustable Z-axis and a 2-station rotary table. It is ideally suited for the production of serial parts found in day/night design elements, metal components, tools or medical products.
